6 AWG Ultra-Flexible Silicone Wire – Tinned Copper 600V 200°C – Red or Black – Sold by the Foot

Description

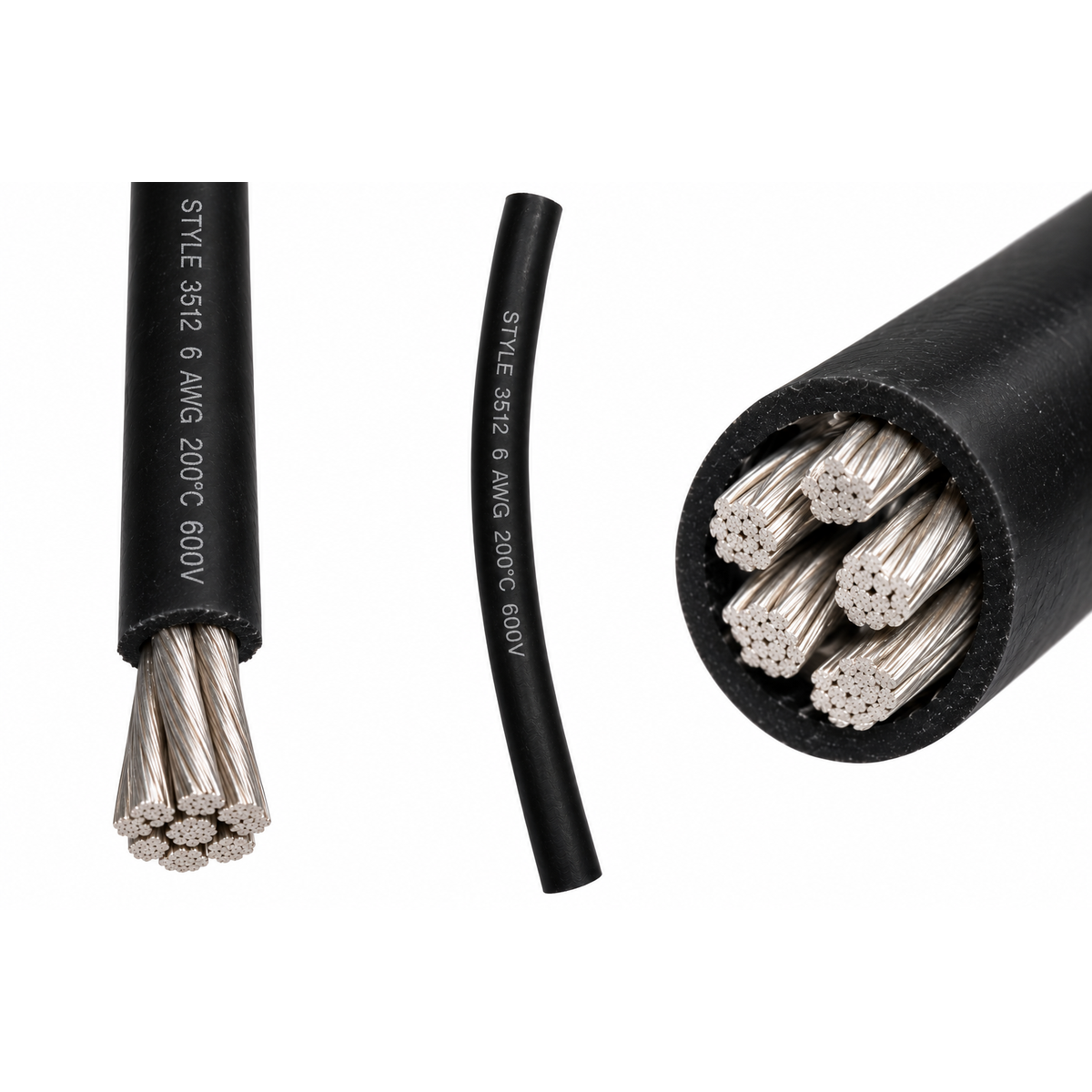

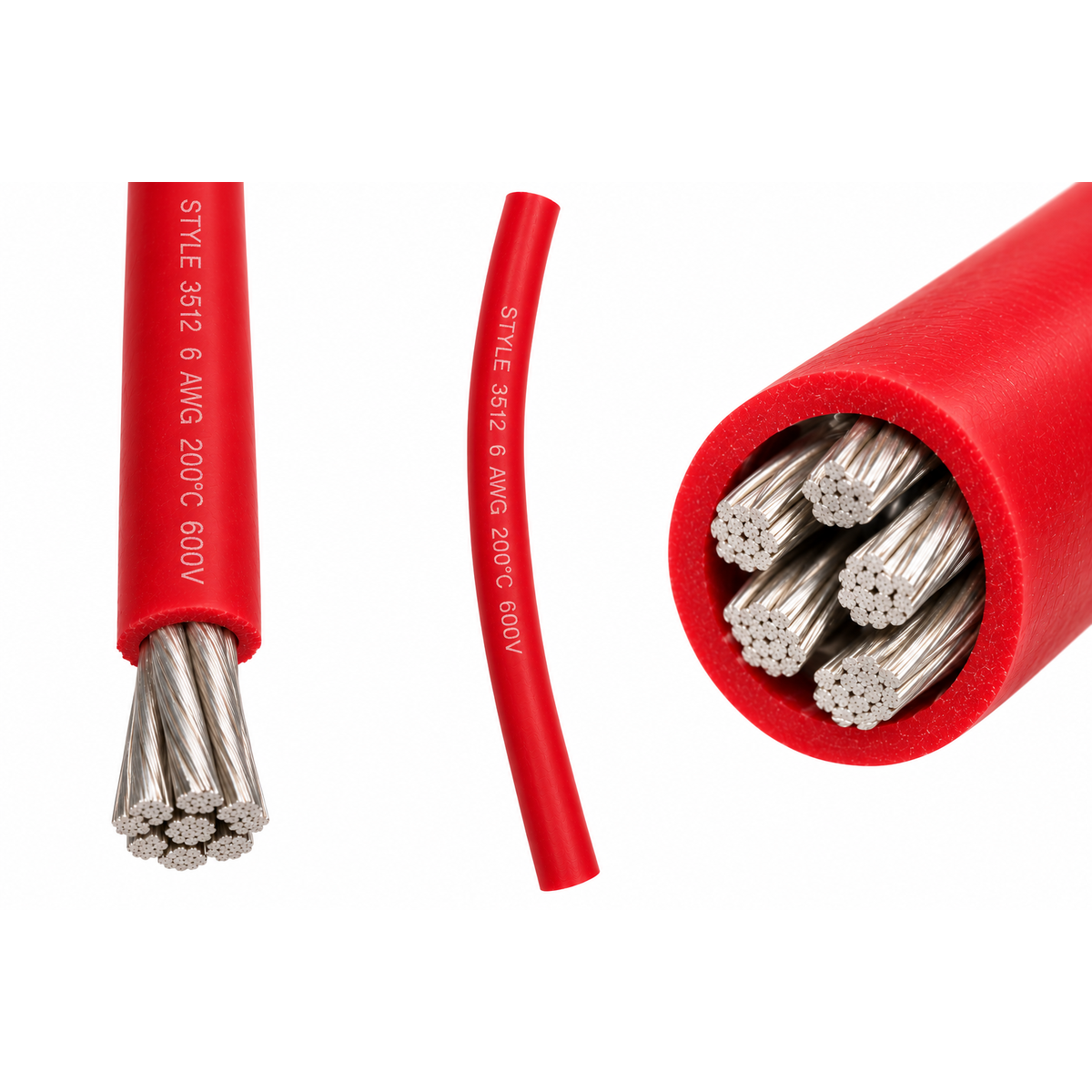

6 AWG Ultra-Flexible Silicone Wire – Premium Tinned Copper Cable

The 6 AWG Ultra-Flexible Silicone Wire from Geo Eco Systems provides a dependable wiring solution for solar power systems, battery banks, inverters, and DC electrical equipment. Featuring fine-stranded tinned copper conductors and flexible silicone rubber insulation, this premium cable offers excellent flexibility for installations where conventional wire can be difficult to route.

Available in red or black and sold by the foot, this wire allows customers to order the length required for their electrical projects. Its combination of fine copper strands and durable insulation makes it a practical option for custom battery cables and renewable energy applications.

Fine-Stranded Tinned Copper Construction

Each conductor contains approximately 2,660 individual tinned copper strands measuring 0.08 mm in diameter. This fine-stranded configuration allows the cable to bend easily around corners and through confined equipment spaces. Furthermore, the tin coating helps protect the copper surface against oxidation and corrosion.

The conductor features a specified cross-sectional area of 13.3 mm². As a result, the wire provides a substantial conductive path while maintaining flexibility. Installers can use this construction when preparing custom-length connections for compatible electrical equipment.

High-Temperature Silicone Rubber Insulation

The 6 AWG Ultra-Flexible Silicone Wire features silicone rubber insulation with a manufacturer-specified temperature rating of 200°C (392°F). Additionally, the wire carries a 600V voltage rating for appropriately designed electrical applications.

The cable has an outside diameter of 8.5 mm with a tolerance of ±0.3 mm. Its average insulation thickness measures 1.54 mm, while the minimum specified thickness is 1.25 mm. The manufacturer also identifies the silicone insulation material as RoHS compliant.

These characteristics make the wire suitable for consideration in electrical installations where flexibility, insulation temperature resistance, and reliable conductor construction are important.

Solar, Battery, and Inverter Wiring Applications

This flexible tinned copper wire can support various electrical projects when the complete installation meets applicable requirements. Potential applications include battery bank interconnections, inverter DC connections, power distribution assemblies, and custom electrical cables.

The manufacturer specifies a recommended DC current of 120 amps at 20°C. However, this recommendation does not establish the allowable current for every installation. Actual conductor ampacity depends on installation methods, terminal ratings, ambient temperatures, applicable electrical codes, and protective devices.

For safe operation, always verify conductor sizing and equipment compatibility before installation. In addition, use connectors and terminals specifically approved for fine-stranded conductors.

Red or Black Wire – Convenient Per-Foot Ordering

Geo Eco Systems offers this cable in red and black to support organized electrical installations. Red commonly identifies positive DC connections, while black may identify negative DC connections where permitted by applicable wiring standards.

Because the cable is sold by the foot, customers can select quantities based on their project requirements. This ordering method is especially convenient for battery installations, equipment wiring, and custom cable preparation.

6 AWG Silicone Wire Technical Specifications

• Wire Gauge: 6 AWG (13.3 mm²)
• Conductor Material: Fine-stranded tinned copper
• Strand Configuration: 2,660 × 0.08 mm
• Insulation: Silicone rubber (RoHS)
• Average Insulation Thickness: 1.54 mm
• Outside Diameter: 8.5 ± 0.3 mm
• Voltage Rating: 600V
• Temperature Rating: 200°C (392°F)
• Recommended DC Current: 120A at 20°C (manufacturer specification)
• Conductor Resistance: ≤1.40 Ω/km at 20°C
• UL AWM Style: 3512
• Available Colors: Red or Black
• Purchase Unit: Per foot

Choose Geo Eco Systems 6 AWG Ultra-Flexible Silicone Wire for fine-stranded tinned copper construction, flexible high-temperature insulation, and convenient custom-length ordering. Select your preferred color and quantity for your next solar, battery, or DC power project.
