GEO GEN 80 PLUS

Description

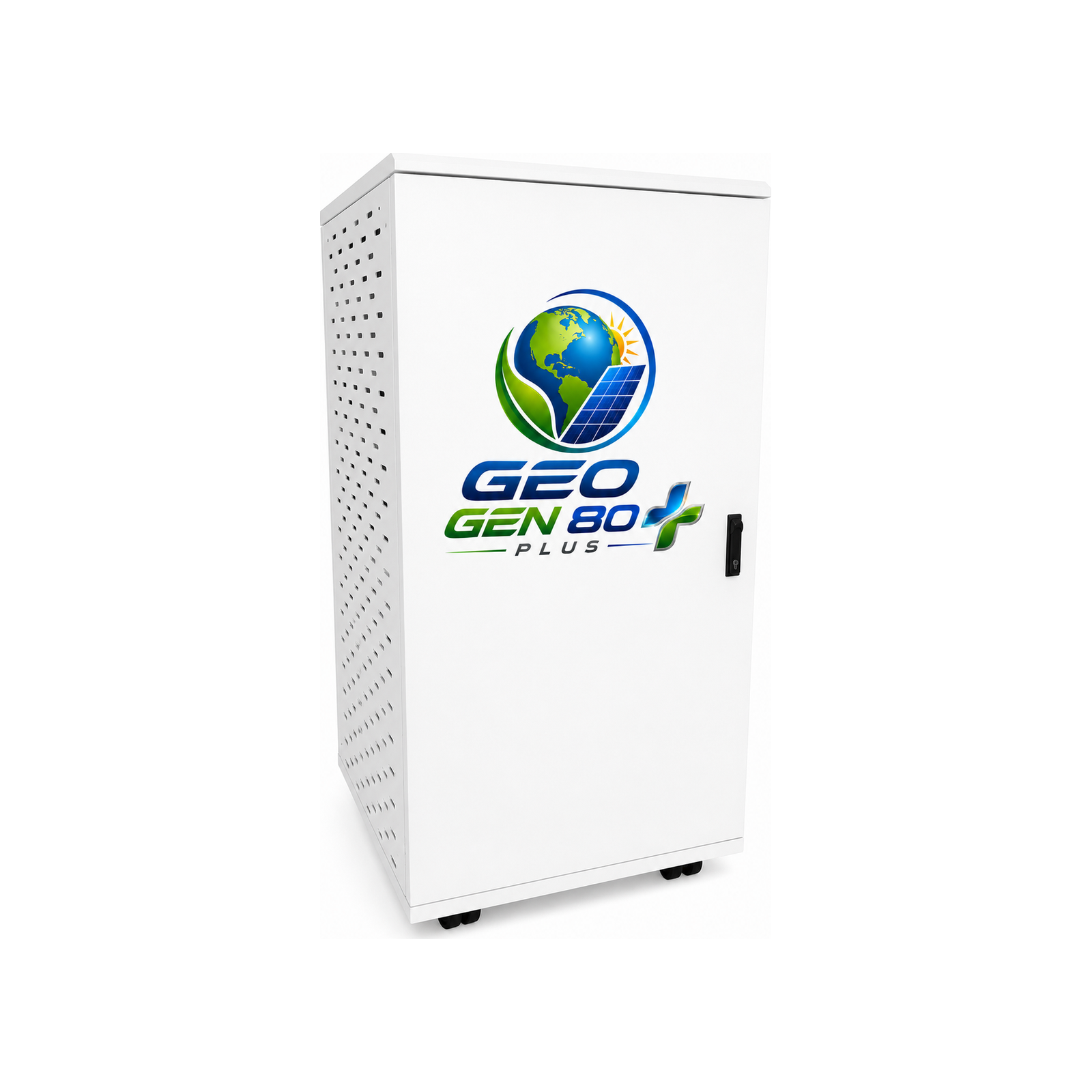

GEO GEN 80 PLUS — 80 kWh LiFePO4 Battery System

80 kWh LiFePO4 Battery System for Off-Grid Power

The 80 kWh LiFePO4 Battery System, GEO GEN 80 PLUS, provides high-capacity energy storage for serious off-grid, whole-home backup, and high-demand solar applications. With 80.38 kWh of total energy storage, this system delivers substantial battery capacity for homes and applications that require dependable power day and night.

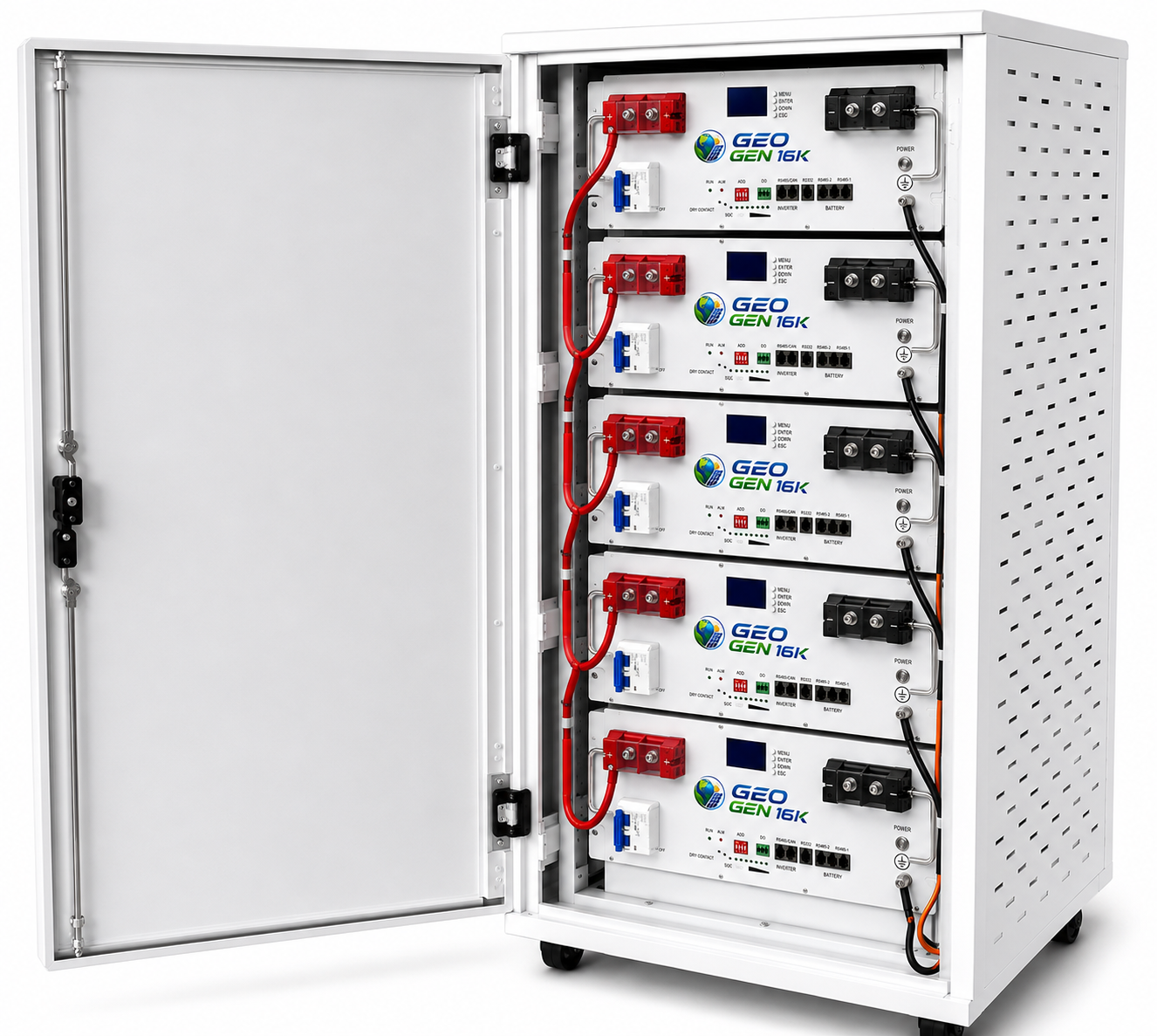

The GEO GEN 80 PLUS combines five 16.08 kWh LiFePO4 battery modules inside a heavy-duty floor-standing cabinet. Each module operates at 51.2V nominal voltage and provides 314Ah of rated capacity. Together, the five modules provide approximately 1,570Ah of total rated capacity.

High-Capacity LiFePO4 Energy Storage

This 80 kWh LiFePO4 Battery System supports demanding energy requirements while providing the safety and long service life associated with lithium iron phosphate chemistry. In addition, its modular configuration provides substantial storage in one organized battery cabinet.

Each battery module supports up to 250A maximum charge current and 250A continuous discharge current. Peak discharge capability reaches 300A for one second. Therefore, the system can support appropriately designed high-demand off-grid and backup power installations.

Built-In Low-Temperature Heating

The GEO GEN 80 PLUS includes integrated heating pads for low-temperature charging. The heating system operates within a specified heating range of -40°F to 32°F, helping support charging in cold environments.

The specified battery charging temperature range is 32°F to 140°F, while the discharge temperature range extends from -4°F to 140°F. This makes the system suitable for a wide range of operating environments when installed according to system requirements.

Designed for Whole-Home and Off-Grid Energy Storage

The GEO GEN 80 PLUS is designed for customers who need significantly more energy storage than a typical residential battery provides. Its 80.38 kWh capacity makes it well suited for off-grid homes, whole-home backup systems, large solar installations, and other high-energy applications.

For customers requiring less storage capacity, GEO GEN systems can also be configured around smaller battery solutions. This allows an energy storage system to be selected according to the home’s actual power and storage requirements.

GEO GEN — Power Without Limits.
