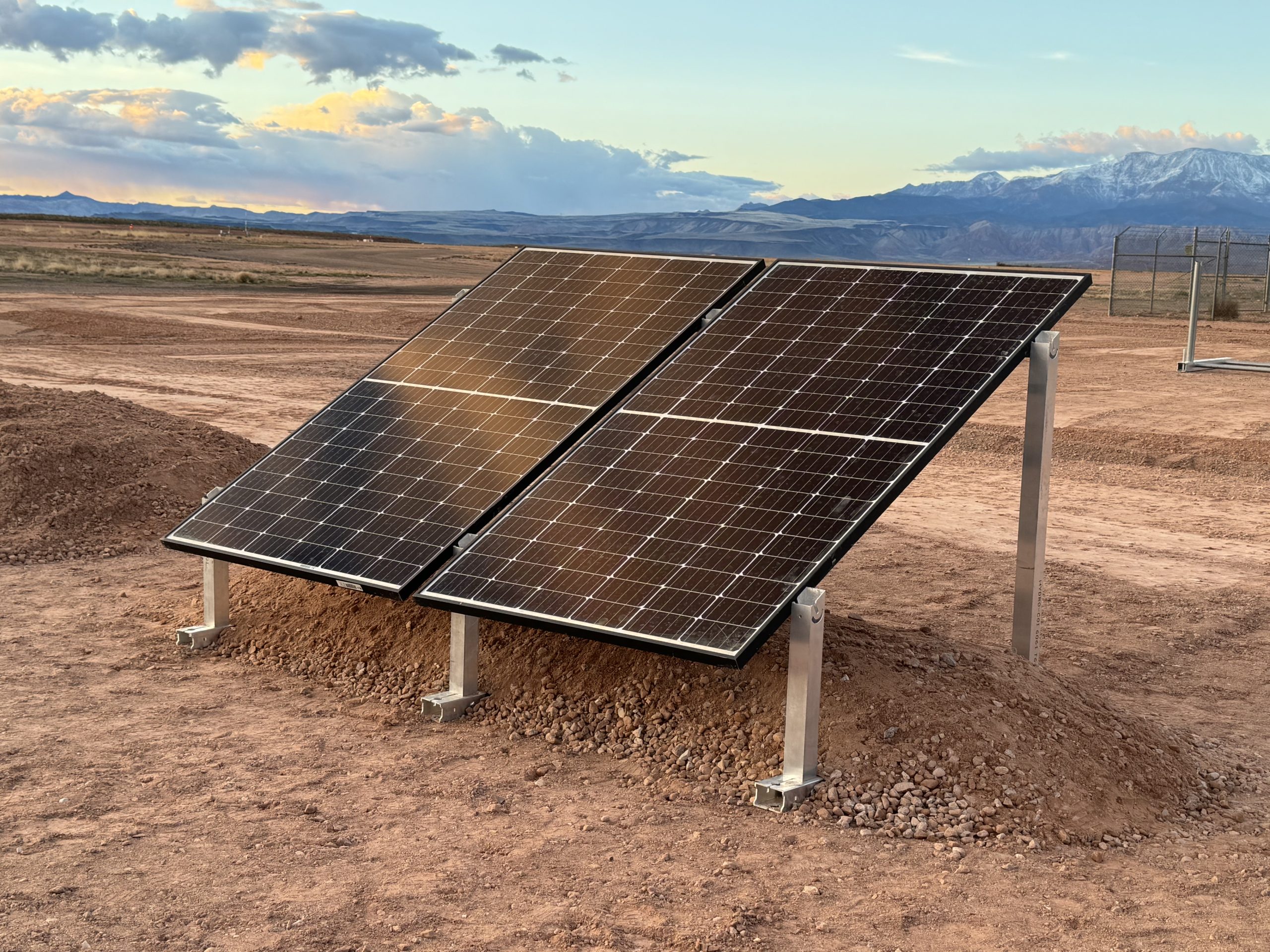

IntegraRack IR-30 BallastRack Fixed 30° Solar Panel Ground Mount
The IntegraRack IR-30 BallastRack is a fixed-angle solar panel ground-mount system designed for residential, commercial, and off-grid solar installations. Built from aircraft-grade aluminum and black zinc-plated steel, this mounting system holds solar modules at a fixed 30° tilt angle. Additionally, its universal design accommodates different solar module sizes and supports multiple mounting configurations.
Unlike seasonally adjustable solar mounting systems, the IR-30 maintains a consistent 30° panel angle throughout the year. As a result, solar panel owners can use a fixed mounting configuration without making seasonal tilt adjustments. Furthermore, the system includes IntegraRack IR-F2 bonding clamps for securing solar modules as part of the manufacturer’s mounting design.
IntegraRack IR-30 Key Features
- Fixed 30° Tilt: Holds solar panels at a consistent 30° mounting angle.
- Universal Solar Module Design: Designed to accommodate a wide range of solar panel sizes.
- Aircraft-Grade Aluminum Construction: Combines aircraft-grade aluminum with black zinc-plated steel components.
- Mill Finish: Features the manufacturer’s specified mill finish.

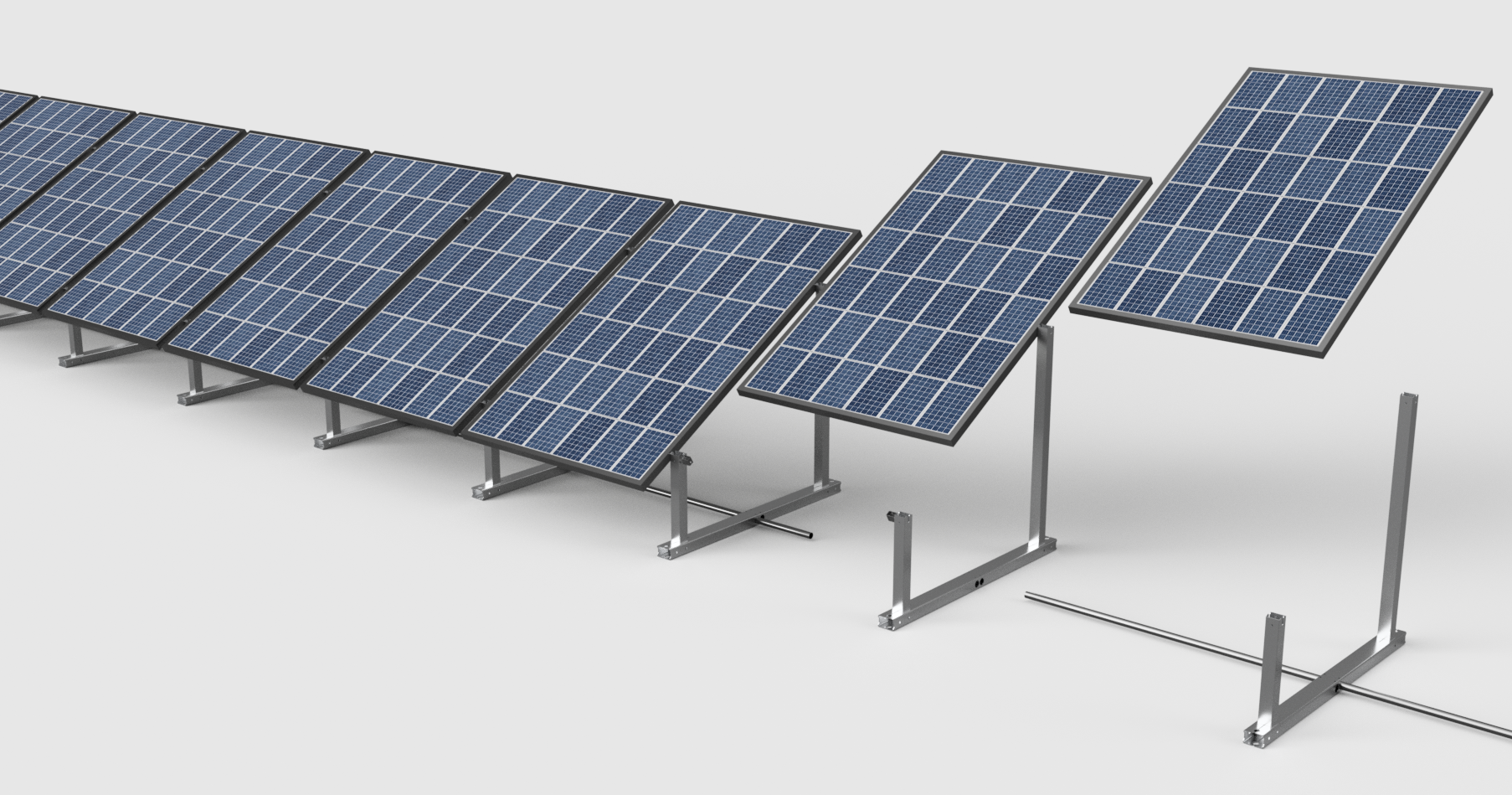

- Multiple Mounting Configurations: Supports different ground-mount installation layouts.
- Included Bonding Clamps: Includes four IntegraRack IR-F2 flange clamp bonding brackets.
- Off-Grid Solar Applications: Provides a fixed-angle mounting option for off-grid solar power systems.
IR-30 Technical Specifications
- Manufacturer: IntegraRack
- Model: IR-30 BallastRack
- Manufacturer Part Number: IR-30RF1030
- Product Type: Fixed-angle solar module ground-mount rack
- Mounting Application: Solar panel ground mount
- Solar Panel Tilt: Fixed 30°
- Material: Aircraft-grade aluminum / black zinc-plated steel
- Finish: Mill
- Solar Module Compatibility: Universal design for different solar module sizes
- Mounting Configurations: Multiple configurations available
IntegraRack IR-30 Included Mounting Hardware
Each IR-30 BallastRack package includes mounting hardware specified by IntegraRack. Specifically, the included components consist of:
- 4 × IR-F2 flange clamp bonding brackets
- 4 × M8-1.25 × 90mm carriage bolts
- 4 × M8-1.25 serrated nuts
- 4 × M8-1.25 × 16mm thread-cutting bolts
Additionally, the included IR-F2 flange clamp bonding brackets support solar module mounting and electrical bonding according to the manufacturer’s installation design. However, installers should follow current IntegraRack installation instructions to verify proper assembly and electrical bonding requirements.
Shipping Information
- Shipping Weight: 10 lbs
- Shipping Dimensions: 48 × 4 × 4 inches
Benefits of a Fixed 30° Solar Panel Ground Mount
The IntegraRack IR-30 provides a straightforward solution for mounting solar panels at a fixed angle. For example, installers can use the 30° configuration when the selected tilt matches the installation’s solar exposure and energy production goals.
In addition, a fixed-angle rack eliminates the need for routine seasonal tilt adjustments. As a result, solar panel owners can maintain a consistent panel position throughout the year.
Furthermore, the universal mounting design supports different solar module sizes. This flexibility can help installers plan ground-mounted solar arrays for residential properties, commercial facilities, and off-grid energy systems.
However, a fixed 30° tilt may not provide the best solar exposure for every location. Actual solar energy production depends on geographic latitude, panel orientation, shading, weather conditions, and overall system design. Therefore, installers should evaluate site conditions before selecting the final mounting angle.
Solar Ground Mount Installation Considerations
Before installing the IR-30 BallastRack, confirm solar panel compatibility, available installation space, structural requirements, and appropriate anchoring or ballast methods. Additionally, installers should review local building requirements and the manufacturer’s current installation guidelines.
Important: The manufacturer’s supplied hardware list does not identify solar panels or site-specific anchoring materials as included. Therefore, customers should verify any additional materials needed for their installation.
For additional technical information and installation resources, visit the official IntegraRack website.
