IntegraRack IR SlabBallast Mounting Kit – Concrete Anchor Kit for BallastRack Frames
The IntegraRack IR SlabBallast Mounting Kit provides a secure and practical solution for attaching compatible BallastRack solar mounting frames directly to concrete surfaces. Designed for residential, commercial, and off-grid solar installations, this complete concrete anchor kit supports mounting configurations accommodating up to 10 solar modules.
Each kit includes 22 concrete anchor bolts, 44 washers, two concrete drill bits, and a 13mm ratchet wrench. As a result, installers receive essential mounting hardware and installation tools in one convenient package.
Key Features and Benefits
Secure Concrete Anchor Installation

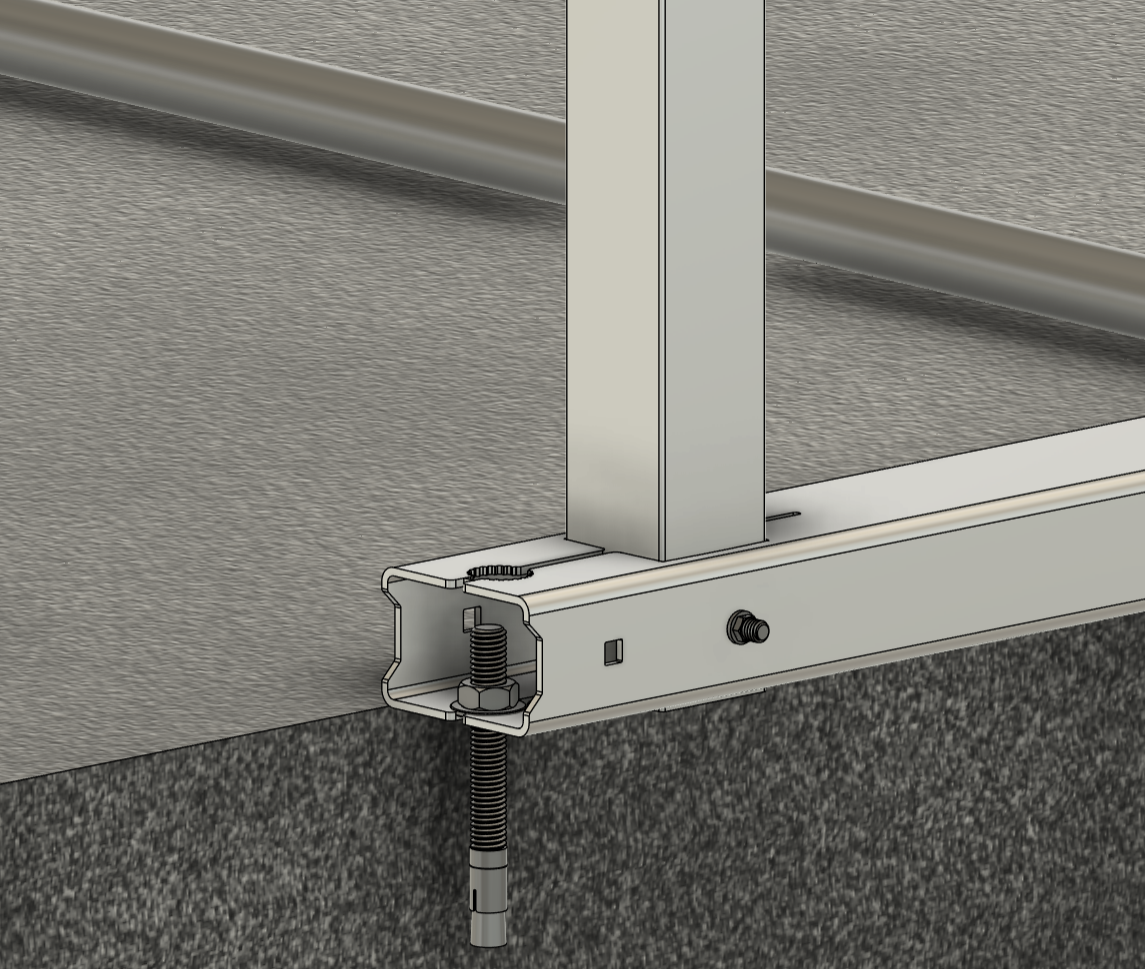

The IntegraRack IR SlabBallast Mounting Kit includes 22 heavy-duty 3/8-inch concrete anchor bolts. These anchors allow installers to fasten compatible BallastRack frames directly to properly designed precast concrete slabs, footings, or existing concrete structures.
Supports Up to 10 Solar Modules
Each mounting kit provides the specified hardware for BallastRack installations supporting up to 10 solar modules. Consequently, it offers a convenient solution for organizing small and medium-sized solar arrays.
Complete Mounting Hardware Package
The kit contains 44 washers to accompany the concrete anchors. Additionally, two concrete drill bits and a 13mm ratchet wrench are included to support installation and BallastRack frame assembly.
Versatile Concrete Mounting Applications
Installers can use this mounting kit with compatible precast concrete slabs, concrete footings, and suitable existing concrete structures. For example, a properly evaluated concrete patio may provide an installation surface when approved by the project engineer.
Compact and Convenient Packaging
With package dimensions of 8 × 4 × 4 inches and a shipping weight of approximately 5 pounds, the mounting kit is compact and convenient to transport. Furthermore, its organized hardware package helps simplify material preparation before installation.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | IntegraRack |
| Product Name | IR SlabBallast Mounting Kit |
| Part Number | IR-RFCB1074 |
| Mounting Application | Concrete Slabs and Footings |
| Compatible Mounting System | IntegraRack BallastRack Frames |
| Solar Module Capacity | Up to 10 Modules Per Kit |
| Anchor Bolt Diameter | 3/8 Inch |
| Concrete Anchor Bolts | 22 |
| Washers | 44 |
| Concrete Drill Bits | 2 |
| Ratchet Wrench | 13mm |
| Shipping Dimensions | 8 × 4 × 4 Inches |
| Shipping Weight | 5 lbs |
Installation and Concrete Requirements
Proper installation requires a concrete structure capable of supporting the solar mounting system and resisting applicable environmental loads. Therefore, installers must evaluate concrete thickness, strength, anchor embedment, edge distances, and overall structural suitability before installation.
Additionally, local wind conditions, snow loads, building codes, and manufacturer installation instructions must be considered. On-site engineering is required when attaching BallastRack frames to existing concrete structures, as specified by IntegraRack.
Always follow the manufacturer’s approved anchor installation procedures and applicable engineering requirements.
Ideal Solar Applications
- Residential Solar Systems: Secure compatible BallastRack frames to approved concrete mounting surfaces.
- Commercial Solar Projects: Support organized solar installations using engineered concrete foundations.
- Off-Grid Solar Arrays: Provide concrete anchoring hardware for remote solar energy systems.

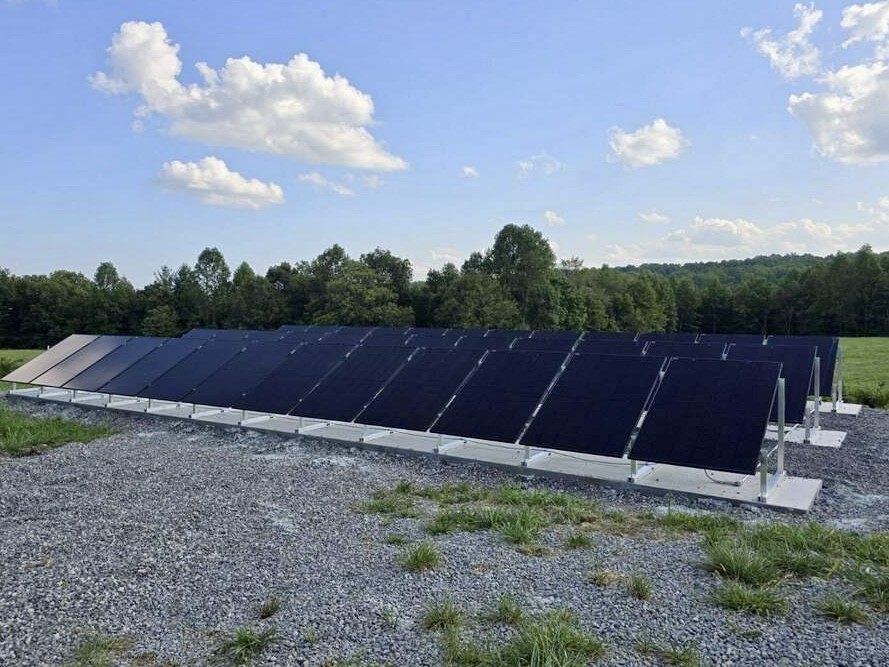

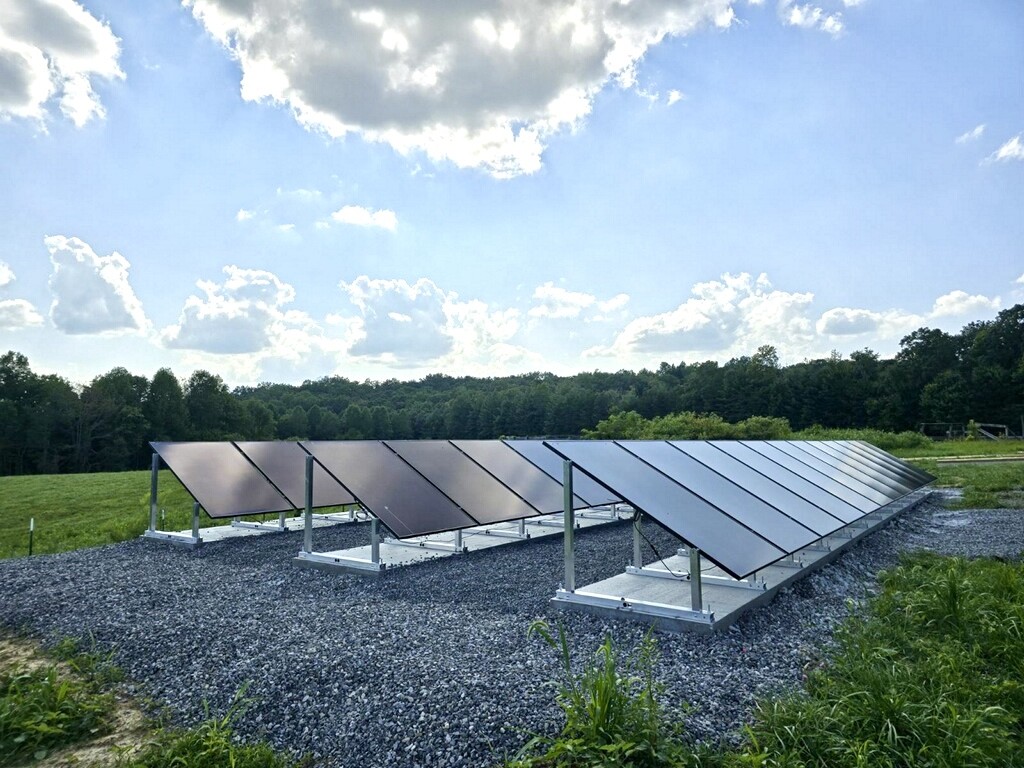

- Precast Concrete Foundations: Attach compatible mounting frames directly to properly designed slabs or footings.
Why Choose the IntegraRack IR SlabBallast Mounting Kit?
The IntegraRack IR SlabBallast Mounting Kit combines essential concrete anchoring hardware with convenient installation tools. Moreover, its compatibility with BallastRack frames makes it a practical accessory for solar mounting projects requiring direct attachment to concrete.
At Geo Eco Systems, we supply quality solar mounting equipment, lithium batteries, inverters, and renewable energy products for residential, commercial, and off-grid applications.
Choose the IntegraRack IR SlabBallast Mounting Kit for a convenient concrete anchoring solution designed to support compatible BallastRack solar mounting installations.
