Talesun BIPRO 400W Bifacial Solar Panel

Description

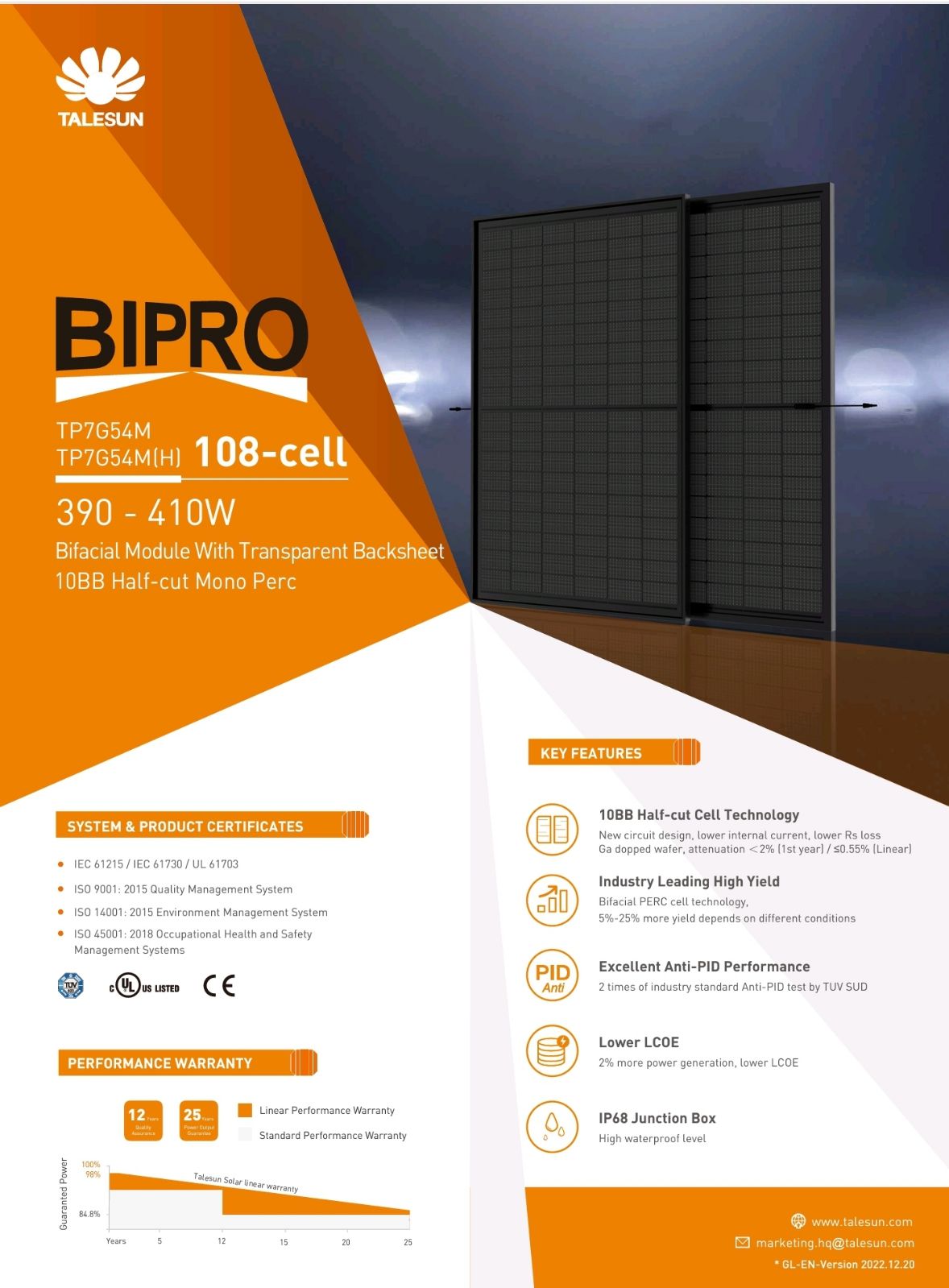

Talesun BIPRO 400W Bifacial Solar Panel

The Talesun BIPRO 400W Bifacial Solar Panel delivers efficient solar energy generation for residential, commercial, and off-grid applications. Its bifacial design captures sunlight from both the front and rear of the module, helping increase energy production when installation conditions allow.

Advanced Bifacial Solar Technology

This 400W solar panel features 108 half-cut monocrystalline PERC cells and a transparent backsheet. As a result, the module can generate additional electricity from reflected sunlight reaching its rear surface. Furthermore, its half-cut cell design helps reduce internal electrical losses.

Key Features and Benefits

• 400W rated power: Reliable front-side output under standard test conditions.
• Bifacial energy generation: Captures reflected sunlight from the rear for potential additional output.
• 20.5% module efficiency: Efficient power generation in a compact module.
• 108 half-cut PERC cells: Designed to reduce resistive losses and improve performance.
• IP68 junction box: Provides protection against dust and water ingress.
• Durable construction: Features tempered front glass and an anodized aluminum alloy frame.
• Long-term warranty: Backed by a 12-year product warranty and 25-year linear performance warranty.

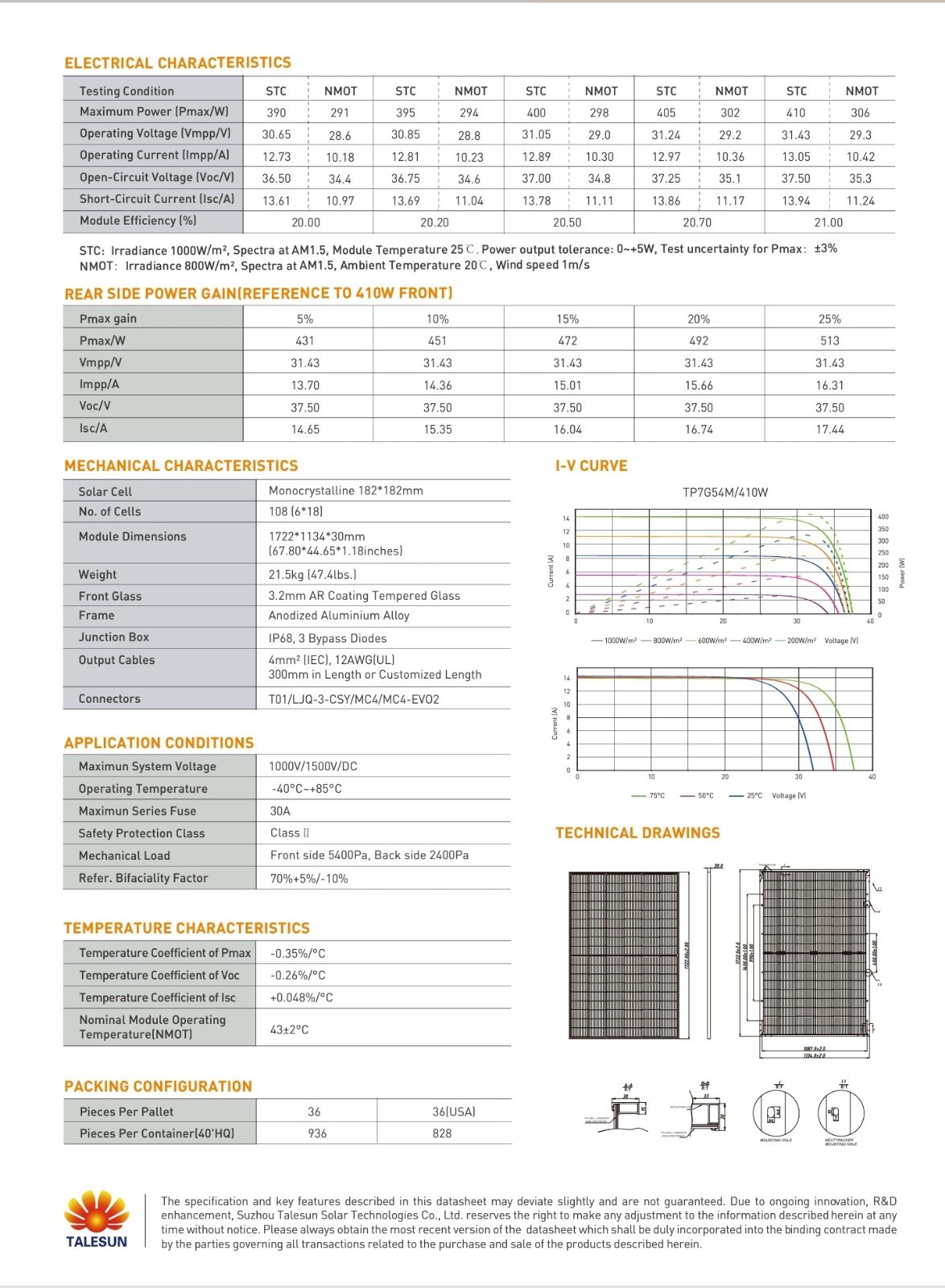

Electrical Specifications

• Maximum power (Pmax): 400W
• Maximum power voltage (Vmp): 31.05V
• Maximum power current (Imp): 12.89A
• Open-circuit voltage (Voc): 37.00V
• Short-circuit current (Isc): 13.78A
• Module efficiency: 20.5%
• Maximum series fuse rating: 30A

Mechanical Specifications

• Dimensions: 67.80 × 44.65 × 1.18 inches
• Weight: 47.4 lbs
• Cell configuration: 108 half-cut monocrystalline cells
• Front glass: 3.2mm AR-coated tempered glass
• Junction box: IP68 rated with three bypass diodes

Applications

The Talesun BIPRO 400W Bifacial Solar Panel is suitable for a variety of solar installations, including ground-mounted arrays, off-grid power systems, and commercial solar projects. In addition, installations with reflective ground surfaces and adequate rear clearance may benefit from increased bifacial energy production.

Choose the Talesun BIPRO 400W Bifacial Solar Panel from Geo Eco Systems for efficient solar generation and dependable long-term performance.
