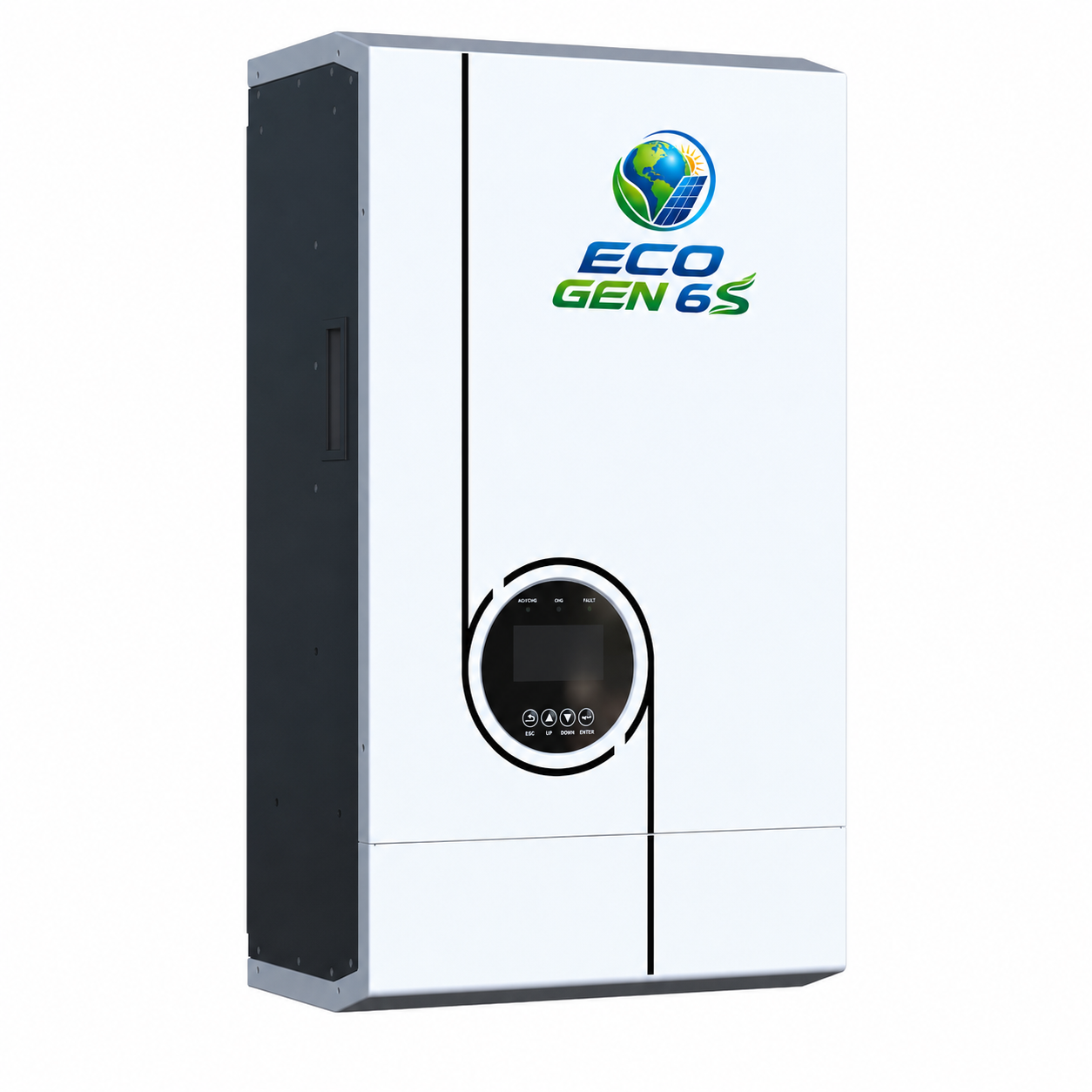

6000W 48V Low-Frequency Off-Grid Solar Inverter – 120V/240V Split-Phase
The 6000W 48V low-frequency off-grid solar inverter from Global Ace Solar delivers dependable pure sine wave power for off-grid homes, cabins, workshops, and independent energy systems.
Featuring a heavy-duty low-frequency transformer, 120V/240V split-phase output, built-in 80A MPPT solar charge controller, and expandable parallel capability, the GeoGen6S provides a versatile solution for demanding off-grid power applications.
Heavy-Duty Low-Frequency Transformer Technology
Unlike high-frequency transformerless inverters, the GeoGen6S features a low-frequency isolated transformer designed for dependable power conversion.
Its 6000W continuous rated output and 18,000W surge rating for 20 milliseconds provide additional short-duration power capacity for compatible electrical loads.
Furthermore, pure sine wave output supplies clean AC electricity for household appliances, electronics, and other compatible equipment.
120V/240V Split-Phase Power
The GeoGen6S supports 120V/240V split-phase AC output, making it suitable for off-grid installations requiring both standard 120V circuits and compatible 240V electrical equipment.
This flexibility allows the inverter to serve a wider range of residential, agricultural, and workshop applications.
Stackable and Expandable – Up to Six Inverters
The GeoGen6S supports parallel operation with up to six compatible inverters, allowing system capacity to expand as electricity requirements increase.
- Single Inverter: 6000W rated output
- Two Inverters: Up to 12kW combined rated capacity
- Four Inverters: Up to 24kW combined rated capacity
- Six Inverters: Up to 36kW combined rated capacity
Combined output ratings depend on the manufacturer’s supported configurations, proper installation, and compatible system components.
Built-In 80A MPPT Solar Charge Controller
The integrated 80A MPPT solar charge controller helps manage solar battery charging while optimizing energy collection from compatible solar panels.
With support for up to 4500W of PV input and a maximum PV open-circuit voltage of 250V DC, the GeoGen6S combines solar charging and inverter functionality into one integrated system.
The specified MPPT operating voltage range is approximately 60–245V DC.
Generator Compatibility and AC Battery Charging
The GeoGen6S supports compatible generator or utility AC input, providing an additional source of energy when solar production is insufficient.
Its built-in AC charger supports up to 60A of battery charging current, helping maintain battery storage during extended periods of limited sunlight.
The inverter also provides a dry-contact signal connection for compatible external control applications. Automatic generator-start operation depends on the external equipment and system configuration.
AC Coupling and Bypass Functionality
The GeoGen6S supports AC coupling configurations described in the manufacturer’s installation manual.
It also includes AC bypass functionality, allowing compatible AC input power to supply connected loads under supported operating conditions.
These capabilities provide additional flexibility when designing independent or expandable solar energy systems.
Communication and Remote Monitoring
The inverter includes communication interfaces for compatible battery management and monitoring equipment.
- CAN/RS485 battery management communication
- USB communication interface
- Optional WiFi/GPRS remote monitoring
- Parallel communication connections
- Dry-contact signal connection
Key Features and Technical Specifications
- Model: GeoGen6S / M6000LS-48SP-M
- Rated Output Power: 6000W (6kW)
- Battery System: 48V DC
- Battery Operating Range: 40–60V DC
- AC Output: 120V/240V Split-Phase
- Inverter Technology: Low Frequency, Isolated Transformer
- Output Waveform: Pure Sine Wave
- Surge Power: 18kW for 20ms
- Parallel Capability: Up to 6 Units
- Maximum Combined Rated Power: Up to 36kW
- Solar Charge Controller: Built-in 80A MPPT
- Maximum PV Array Power: 4500W
- Maximum PV Open-Circuit Voltage: 250V DC
- MPPT Operating Range: 60–245V DC
- Maximum AC Charging Current: 60A
- Maximum Inverter Efficiency: 94%
- Remote Monitoring: Optional WiFi/GPRS
- Battery Communication: CAN/RS485
- Dimensions: 650 × 365 × 247 mm
- Weight: Approximately 84.9 lbs (38.5 kg)
- Enclosure Protection: IP20
- Warranty: 10-Year Global Ace Solar Warranty
Ideal Applications
This 6000W low-frequency solar inverter is suitable for a variety of independent energy applications, including:
- Off-grid homes and cabins
- Remote residential properties
- Workshops and agricultural buildings
- Battery-based solar energy systems
- Installations requiring 120V and 240V power
- Expandable parallel inverter systems
- Generator-assisted off-grid installations
10-Year Global Ace Solar Warranty
The GeoGen6S is backed by a 10-Year Warranty provided by Global Ace Solar, offering additional confidence in your off-grid power investment.
Warranty coverage, exclusions, and claim procedures are subject to Global Ace Solar’s applicable warranty terms.
Build Your Off-Grid Solar System
Pair the GeoGen6S with appropriately sized solar panels, a compatible 48V battery bank, and properly rated electrical protection equipment.
Global Ace Solar and Geo Eco Systems provide solar equipment, battery storage solutions, and accessories to support dependable off-grid power installations.
Important: Follow the manufacturer’s installation instructions for parallel operation, AC coupling, battery compatibility, PV voltage limits, grounding, and electrical protection.
