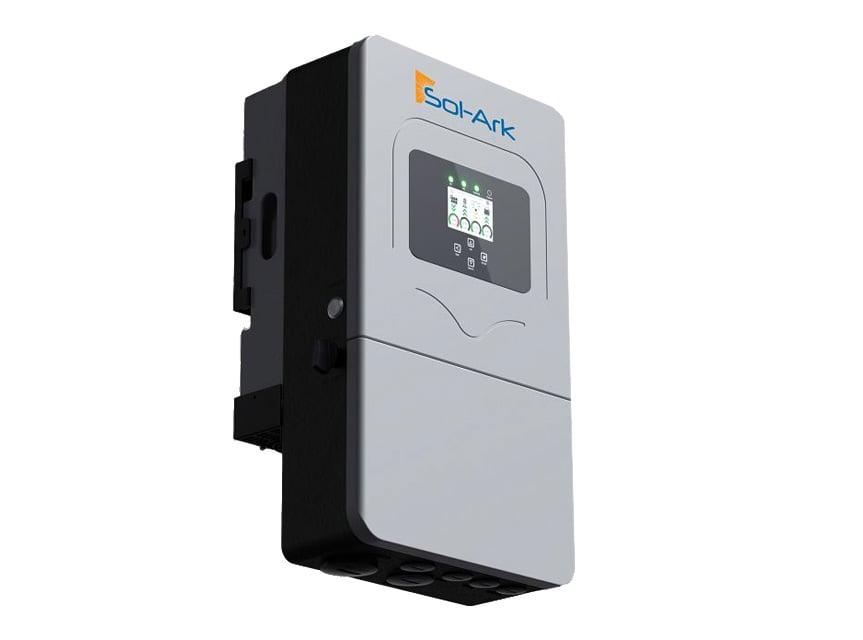

Sol-Ark Limitless 12K Hybrid Solar Inverter – 48V Split-Phase
The Sol-Ark Limitless 12K-2P-LL Hybrid Solar Inverter is a next-generation, all-in-one residential energy management system designed for grid-connected solar, battery backup, and off-grid applications. Featuring advanced solar charging, flexible battery compatibility, generator integration, and intelligent energy management, the Limitless 12K delivers dependable power in a compact, installation-friendly design.
12kW Grid Output and 10kW Battery Backup
Designed for 120V/240V split-phase electrical systems, the Limitless 12K supports up to 12,000W of grid-connected AC output and 10,000W of continuous backup power from batteries. Its 100A grid passthrough capability supports flexible residential electrical system designs.
Three High-Capacity MPPT Solar Trackers
Three independent MPPT trackers support up to 19,200W of solar PV input, with 32A per MPPT and up to two PV strings per tracker. This allows flexible solar array configurations and efficient energy harvesting across multiple roof orientations.
48V Battery Storage and High-Current Charging
The Limitless 12K includes a 48V battery interface with up to 220A of battery charging capability. Compatible battery systems provide energy storage for nighttime use, backup power, and energy management applications.
Generator Integration and AC Coupling
A multifunction AC generator port supports generator input, AC-coupled solar PV, or smart load functionality. The system supports up to 14kW of AC-coupled solar or generator input, providing flexibility for new installations and system upgrades.
Fast Backup Power Transfer
With a 5-millisecond transfer time, the Limitless 12K is designed to maintain power to connected backup loads during utility outages, subject to proper installation and system configuration.
Smart Monitoring and Energy Management
The Sol-Ark MySolArk monitoring ecosystem supports energy production and consumption tracking, historical performance information, and advanced energy management features. Time-of-Use scheduling, peak shaving, and Virtual Power Plant capabilities offer additional control over electricity usage.
Key Features
- Model: Sol-Ark Limitless 12K-2P-LL
- 12,000W grid-connected AC output capability
- 10,000W continuous battery backup output
- 120V/240V split-phase operation
- 48V nominal battery system
- 19,200W supported PV input capacity
- Three MPPT trackers rated at 32A each
- Two PV strings per MPPT
- 220A battery charging capability
- 100A grid passthrough
- Up to 14kW AC coupling or generator input
- Multifunction generator and smart-load port
- 5ms backup transfer time
- Rapid shutdown control
- MySolArk monitoring and Time-of-Use management
- Supports grid-connected and off-grid configurations
- Compact, installation-friendly enclosure
Applications
Ideal for residential solar-plus-storage systems, home battery backup, grid-connected energy management, off-grid power systems, and upgrades to existing solar installations.
