IntegraRack IR-40FSAA BallastRack Adjustable Solar Panel Ground Mount

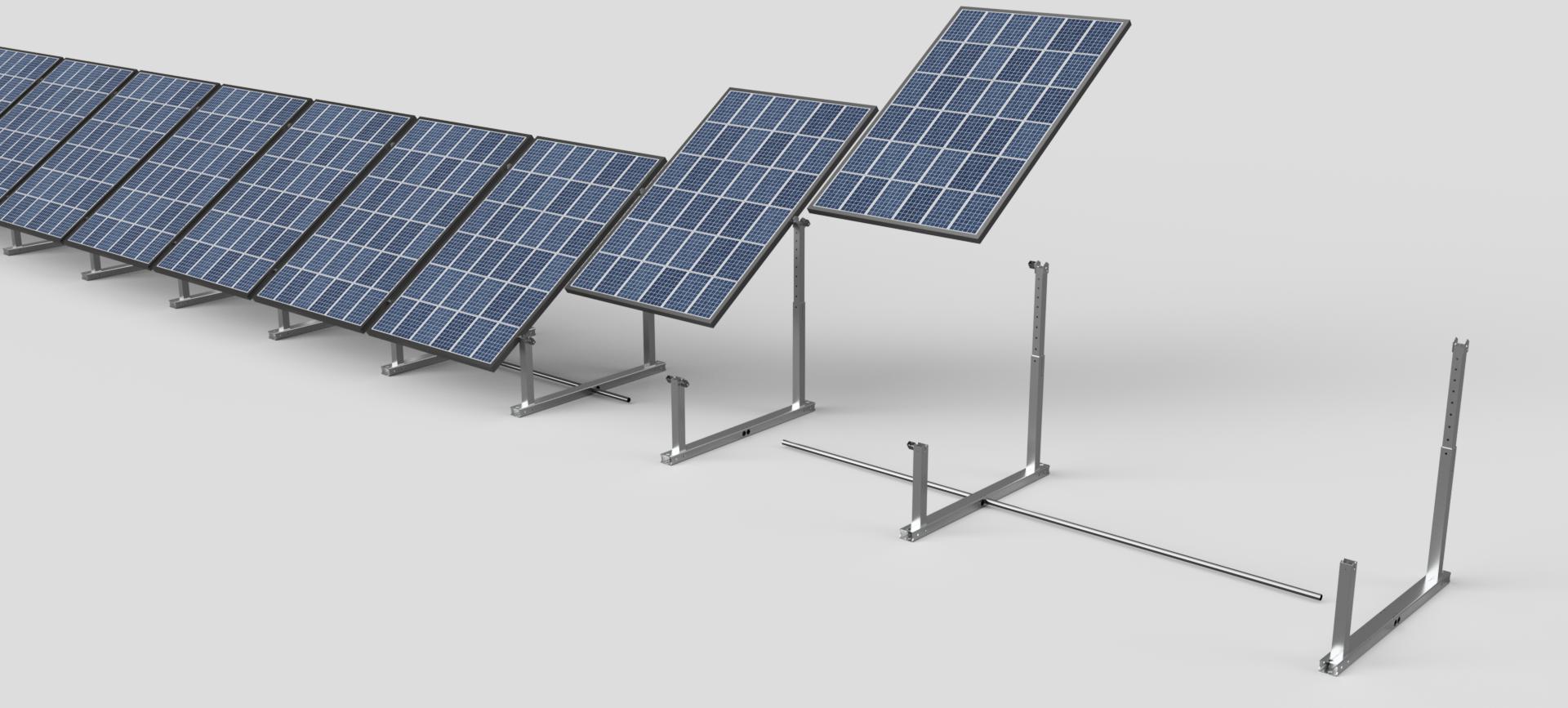

The IntegraRack IR-40FSAA BallastRack is an adjustable solar panel ground-mount system constructed from aircraft-grade aluminum and stainless steel. Designed for versatile solar installations, this mounting rack provides adjustable panel positioning from 15° to 40° in 2.5° increments.
Key Features

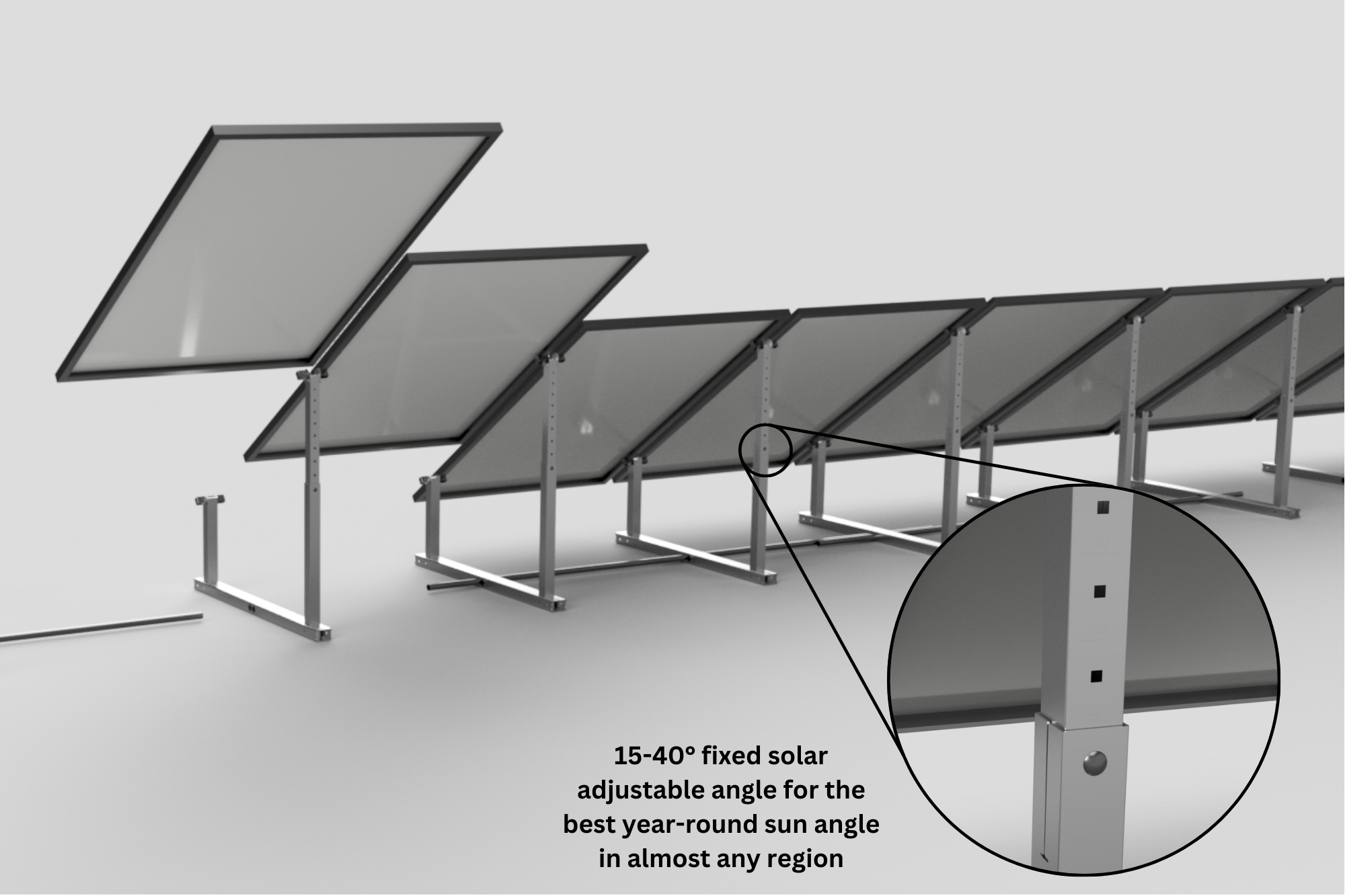

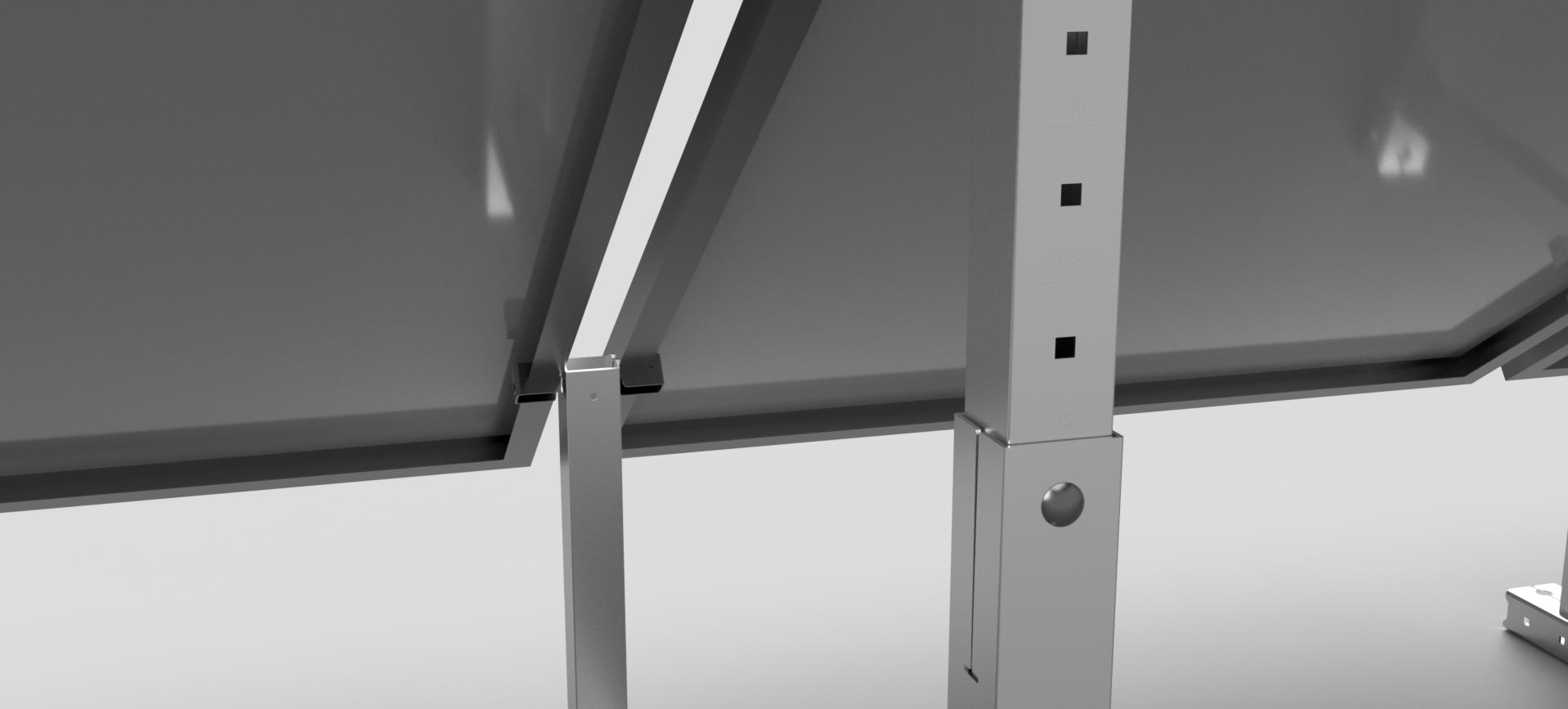

- Adjustable Solar Panel Tilt: 15°–40° in 2.5° increments.
- Aircraft-Grade Aluminum: Aluminum construction with a mill finish.
- Corrosion-Resistant Hardware: Includes coastal-rated, 100% stainless steel IR-F2 bonding clamps and hardware.
- Additional Ground Clearance: Sits 8 inches higher than IntegraRack fixed-angle systems.
- Flexible Mounting: Multiple mounting configurations are available.
Technical Specifications
- Brand: IntegraRack
- Model: IR-40FSAA
- Manufacturer Part Number: IR-40FSAA0041
- Product Type: Fixed adjustable-angle solar module rack
- Tilt Range: 15°–40°
- Tilt Increments: 2.5°
- Material: Aircraft-grade aluminum / stainless steel
- Finish: Mill
- Ground Clearance: 8 inches higher than IntegraRack fixed-angle systems
Included Mounting Hardware
- 4 × IR-F2 flange clamp bonding brackets
- 4 × M8-1.25 × 90 mm carriage bolts
- 4 × M8-1.25 serrated nuts
- 4 × M8-1.25 × 16 mm thread-cutting bolts
Shipping Information
- Shipping Weight: 11 lbs
- Shipping Dimensions: 48 × 4 × 4 inches
Installation Note: Confirm appropriate mounting and anchoring requirements for your installation site. Solar panels and site-specific anchoring materials are not listed as included with this rack.
For additional product information and installation resources, visit the official IntegraRack website.
