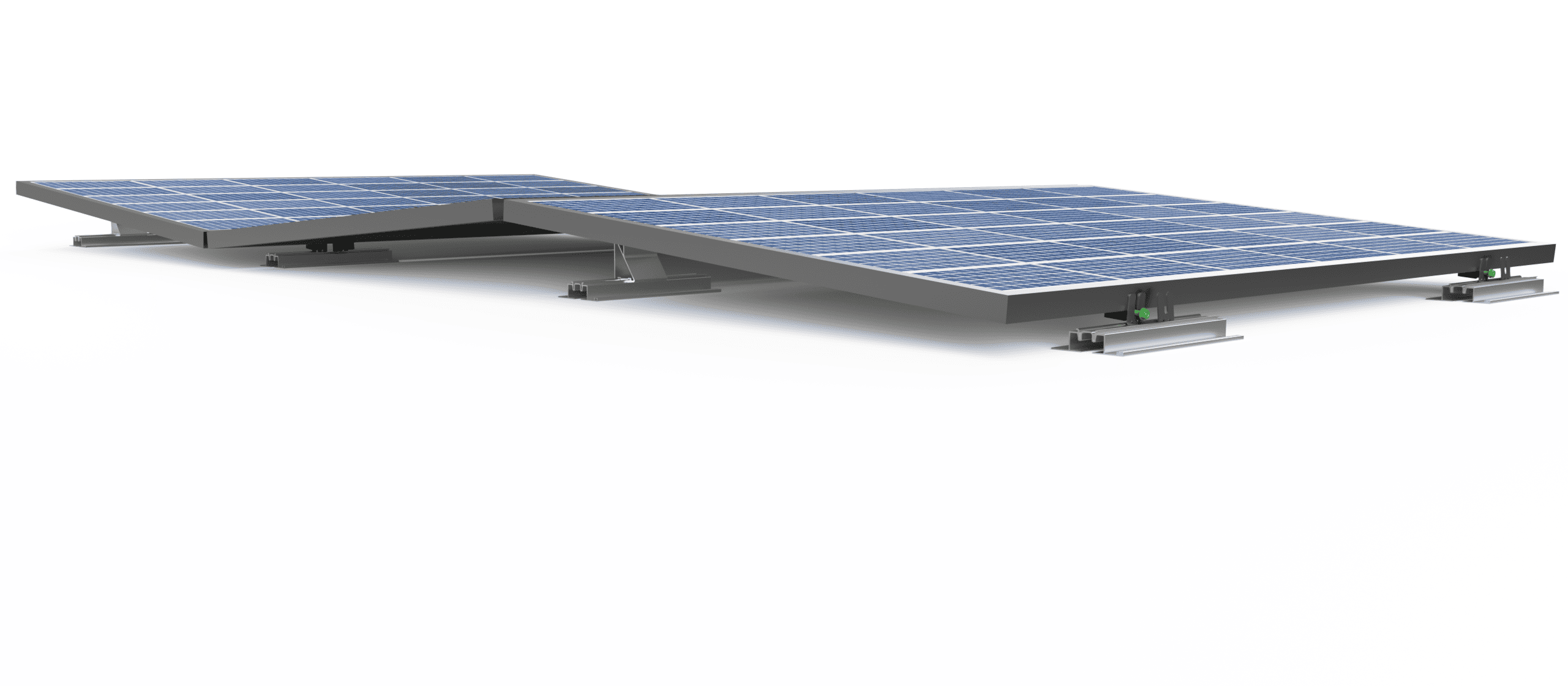

IntegraRack MultiBallast DB™ Series Flat Roof Solar Mounting Kit
The IntegraRack MultiBallast DB™ Series is a non-penetrating solar panel roof mounting solution designed for compatible roofing applications. Manufactured from aircraft-grade aluminum, this low-profile mounting kit supports solar modules in a 0° flat orientation while using an adhesive-bonded installation method that eliminates the need for conventional roof-penetrating mounting fasteners.
Each kit provides mounting components for one solar panel position, with an additional kit required to start each column of modules. Its modular design makes the MultiBallast DB Series suitable for appropriately engineered residential and commercial solar installations.
Non-Penetrating Roof Mounting Design
The MultiBallast DB system bonds directly to approved roofing surfaces using SikaFlex 1A polyurethane sealant. First, installers prepare the roofing surface according to the manufacturer’s instructions. Next, they apply the specified sealant and position the mounting components. As a result, the system avoids conventional roof-penetrating base fasteners. Furthermore, this mounting method helps installers address roof penetration concerns. However, customers must purchase SikaFlex 1A separately.
As with any adhesive-bonded solar mounting system, roof compatibility, surface preparation, structural loading, and attachment strength must be evaluated before installation. Follow the manufacturer’s installation instructions and applicable engineering requirements.
Aircraft-Grade Aluminum Construction
The mounting components feature aircraft-grade aluminum with a mill finish. As a result, the system combines strength with relatively low weight. Furthermore, aluminum offers corrosion resistance for suitable rooftop applications. In addition, the durable construction helps installers create dependable solar mounting assemblies when they follow the manufacturer’s installation requirements.

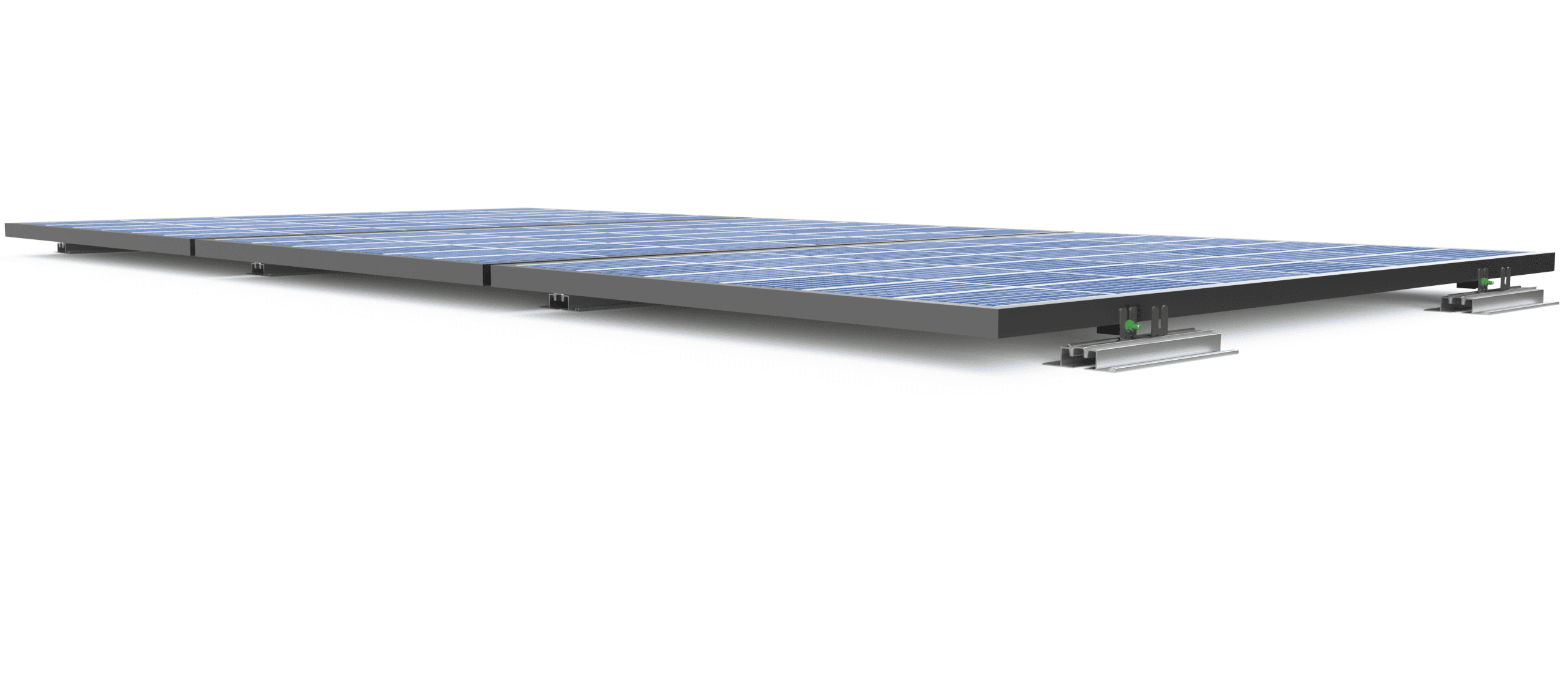

The low-profile 0° configuration keeps solar modules close to the mounting surface. It can be useful where a flat panel arrangement is desired, provided that roof drainage, module clearance, wind loads, and other site-specific requirements are addressed.
Compatible Roof Applications
Manufacturer illustrations show the MultiBallast DB system on several roof configurations, including:

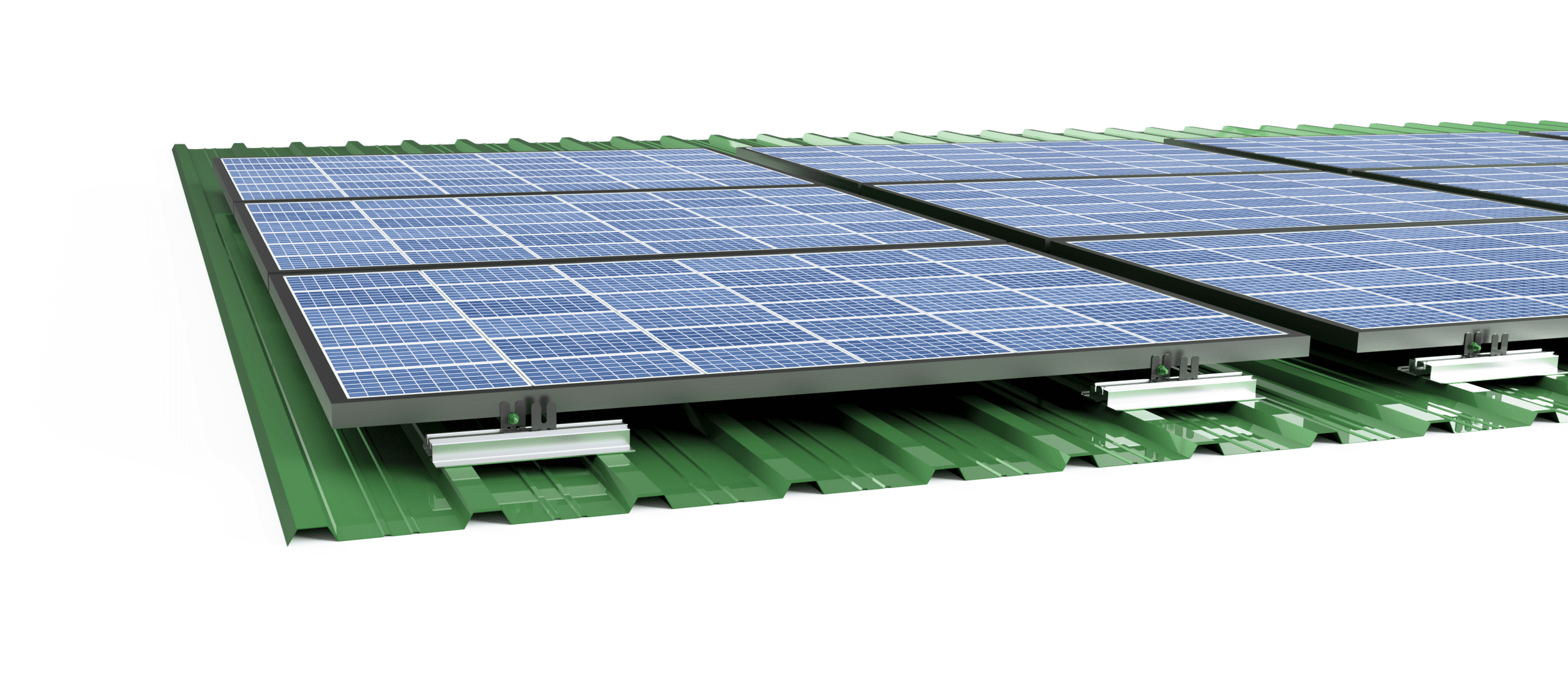

- Corrugated metal roofing

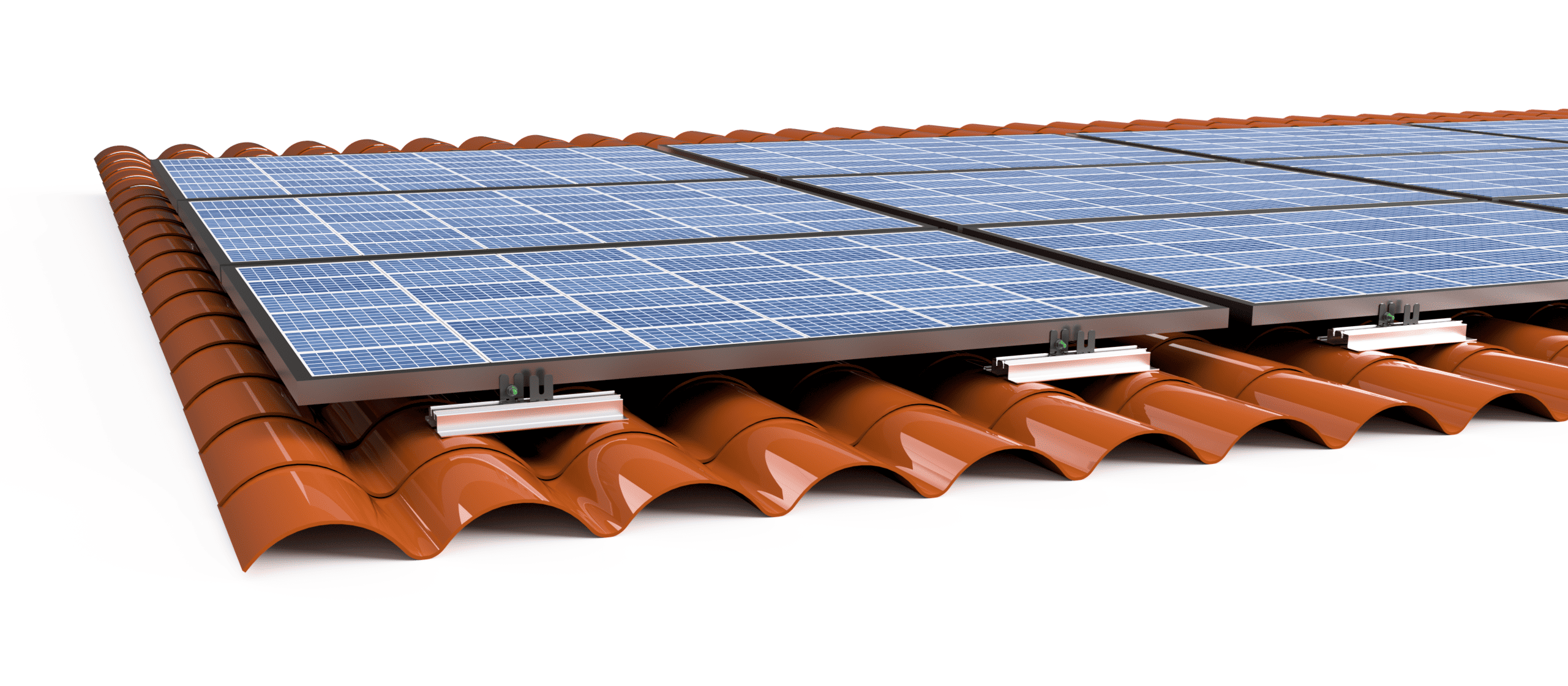

- Clay, concrete, composite, and tile roofing

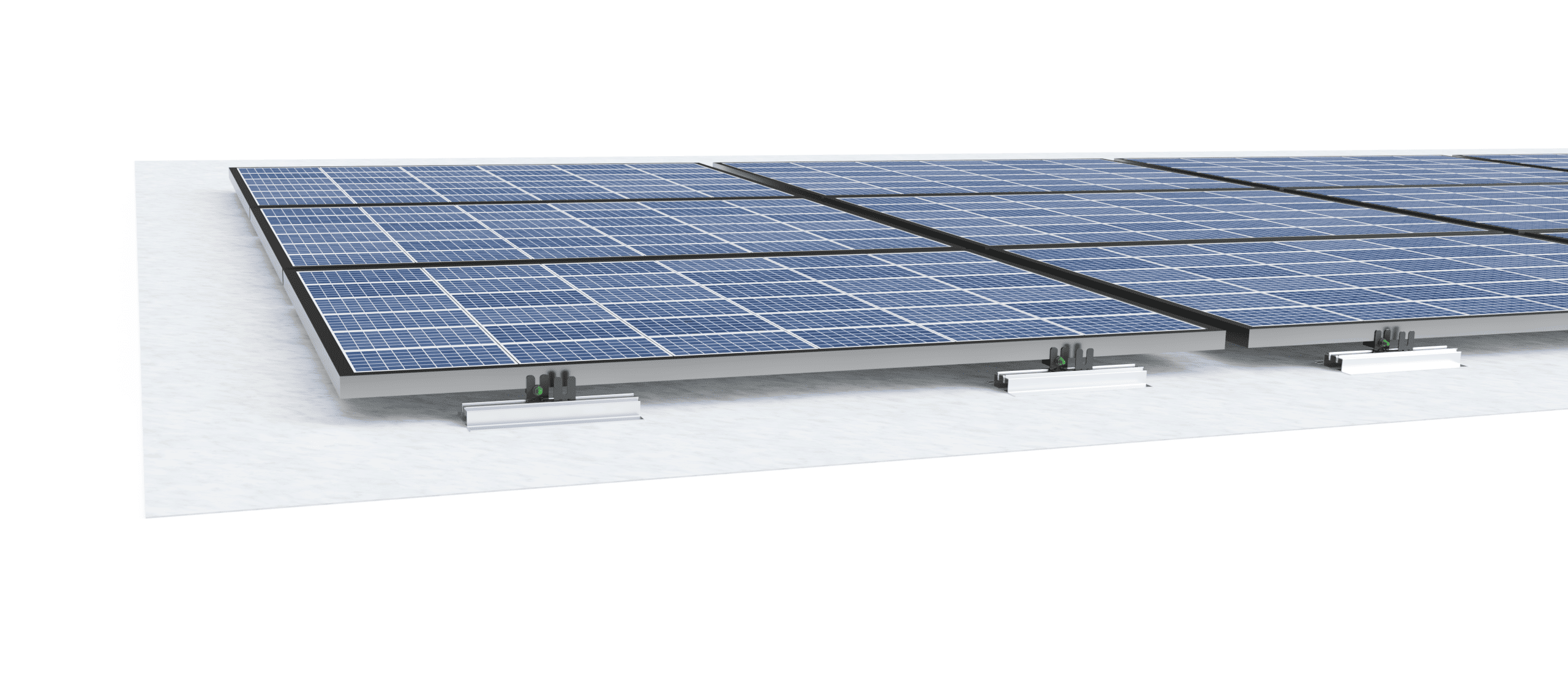

- TPO, concrete, and asphalt roof surfaces

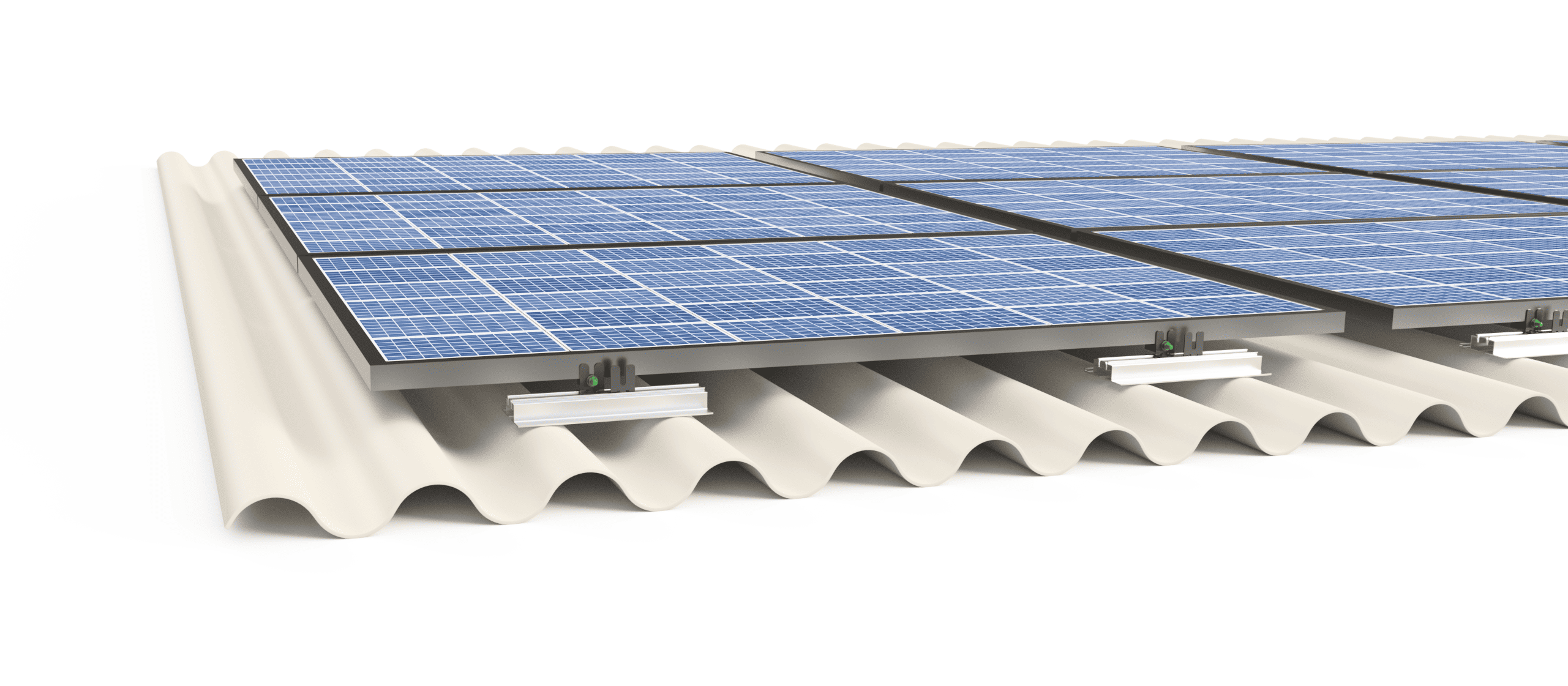

- Asbestos/cement board roofing
These illustrations do not establish universal compatibility. Verify the approved roof substrate, adhesive bonding method, and installation details for the specific project. Existing asbestos-containing roofing requires special handling and must not be disturbed without appropriate precautions.
Hardware Included With Each Kit
Each IntegraRack MultiBallast DB kit includes:
- 2 DB Series base mounts with H brackets installed
- 2 rubber grip strips
- 4 IR-F2 flange clamp bonding brackets
Important: SikaFlex 1A polyurethane sealant is required for the specified adhesive-bonded installation but is not included with the kit.
Modular Solar Array Installation
The MultiBallast DB Series uses a per-panel kit configuration to simplify solar array planning. First, determine the total number of solar panels. Next, count the number of panel columns. Then, add one additional kit for each column. As a result, installers can calculate the required mounting hardware before beginning installation. Additionally, this approach makes it easier to plan larger solar arrays.
For example, a single column containing six solar modules requires seven kits. Larger arrays should be calculated according to the number of modules and individual columns, along with the manufacturer’s installation layout requirements.
Technical Specifications
- Manufacturer: IntegraRack
- Product Series: MultiBallast DB™
- Part Number: IR-00MBDB0092
- Product Type: Non-Penetrating Roof Solar Mounting Kit
- Material: Aircraft-Grade Aluminum
- Finish: Mill
- Panel Orientation: 0° Flat
- Attachment Method: Adhesive Bonding
- Specified Sealant: SikaFlex 1A Polyurethane Sealant (Not Included)
- Package Dimensions: 12 × 5 × 6 inches
- Package Weight: 4 lbs
- Case Quantity: 10 Kits
- Case Dimensions: 28 × 12 × 13 inches
- Case Weight: 40 lbs
