IntegraRack IR-08MBCB MultiBallast™ 8° Solar Panel Mounting Kit
The IntegraRack IR-08MBCB MultiBallast™ provides a durable, low-profile solar panel mounting solution for roof and ground installations. This versatile system features an 8° North/South configuration and uses aircraft-grade aluminum for strength and long-term durability.
Additionally, the system uses standard concrete blocks for ballast, eliminating the need for traditional ground-penetrating anchors in suitable installations. Its modular design accommodates various solar module sizes and supports residential, commercial, and off-grid solar projects.
Key Features
The IntegraRack IR-08MBCB offers several practical advantages for solar installations. Furthermore, its innovative design simplifies solar panel mounting while supporting flexible system layouts.
- 8° North/South Configuration: First, the system positions solar panels at an 8° tilt for North/South array layouts.
- Aircraft-Grade Aluminum: Additionally, its lightweight construction provides strength and durability.
- Ballasted Mounting Design: Instead of relying on traditional ground anchors, the system uses standard concrete blocks for ballast.
- Universal Solar Module Compatibility: Moreover, the mounting kit accommodates various solar module sizes.
- Integrated Bonding Hardware: Each kit also includes four IR-F2 solar module bonding clamps.
- Modular Construction: Furthermore, installers can combine multiple kits to expand their solar arrays.

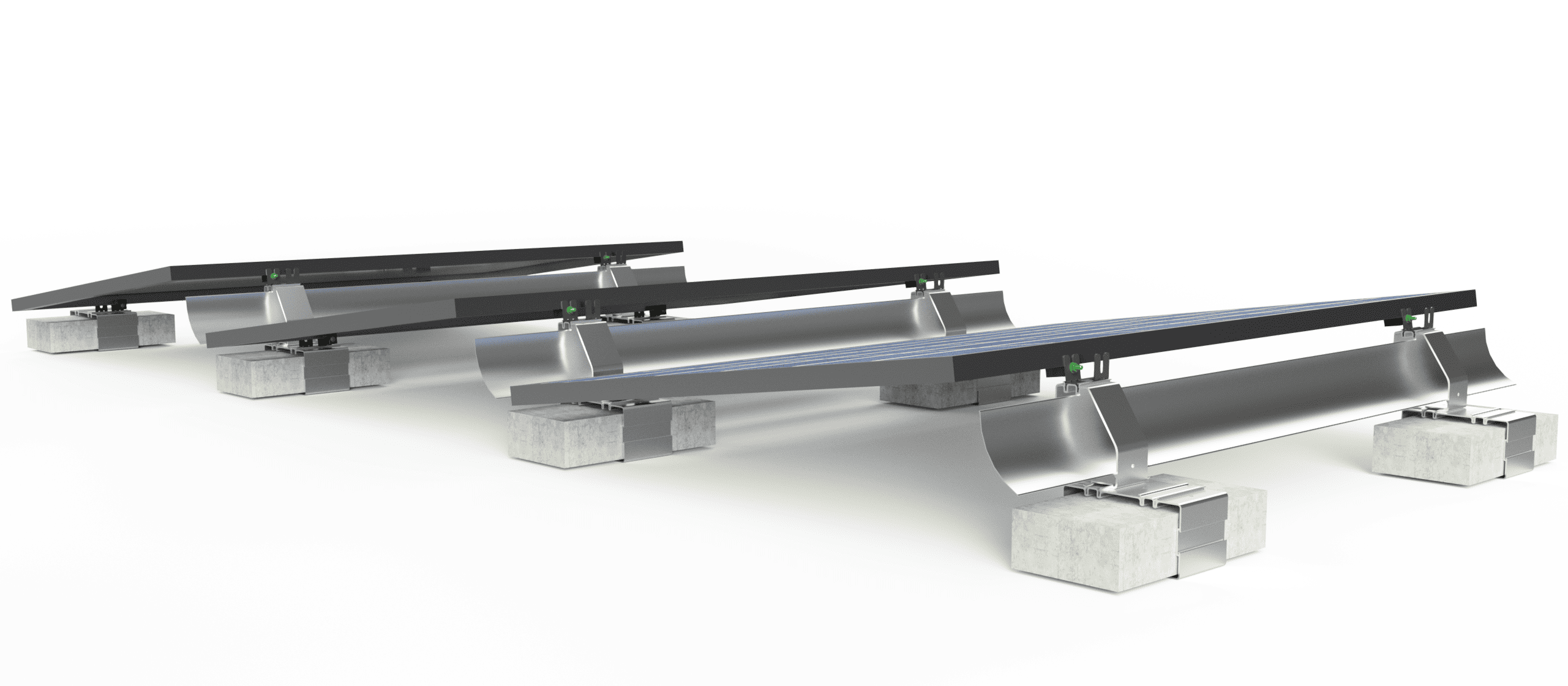

- Wind Spoiler Compatibility: Finally, the system uses a specially designed Wind Spoiler to help block uplift and create downforce.
As a result, the MultiBallast system offers a practical mounting solution for various solar applications.
Kit Components

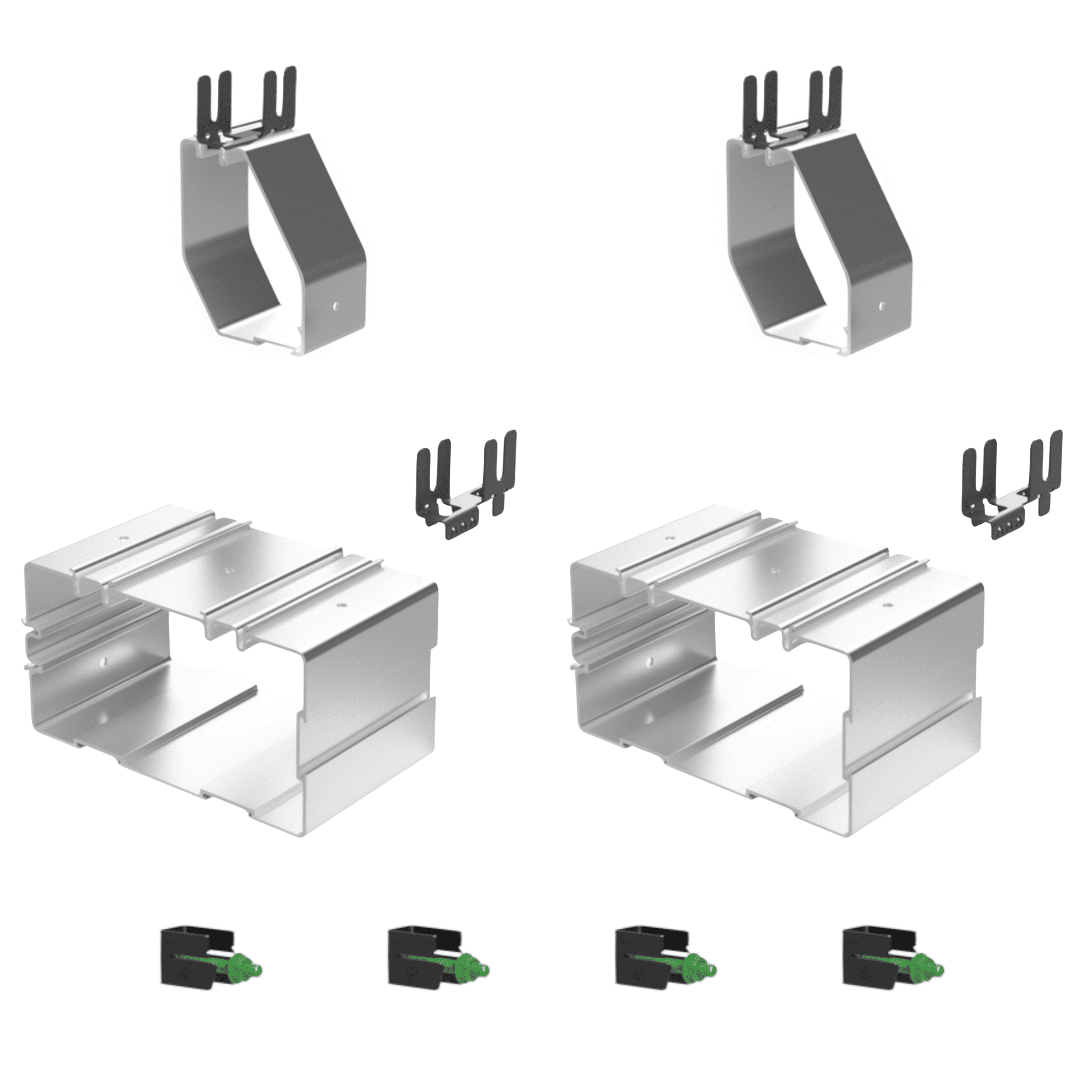

Each IntegraRack IR-08MBCB kit includes:
- (2) Base mounts
- (2) Riser brackets with H brackets installed
- (2) H module mounting brackets
- (4) IR-F2 solar module flange clamp bonding brackets
- (2) 10 mm bolts
- (2) 15 mm bolts
- (4) 20 mm bolts
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | IntegraRack |
| Model | IR-08MBCB |
| Part Number | IR-08MBCB0095 |
| Mounting Angle | 8° North/South |
| Material | Aircraft-Grade Aluminum |
| Finish | Mill |
| Mounting Applications | Roof and Ground |
| Mounting Method | Ballasted |
| Ballast Type | Standard Concrete Blocks |
| Individual Kit Weight | 8 lbs |
| Individual Kit Dimensions | 10 × 9 × 9 inches |
| Case Quantity | 4 Kits |
| Case Weight | 32 lbs |
| Case Dimensions | 19 × 11 × 19 inches |
Installation and Configuration
The IntegraRack IR-08MBCB MultiBallast system supports solar modules through a flexible mounting arrangement. In addition, installers can combine multiple kits to accommodate different array sizes.

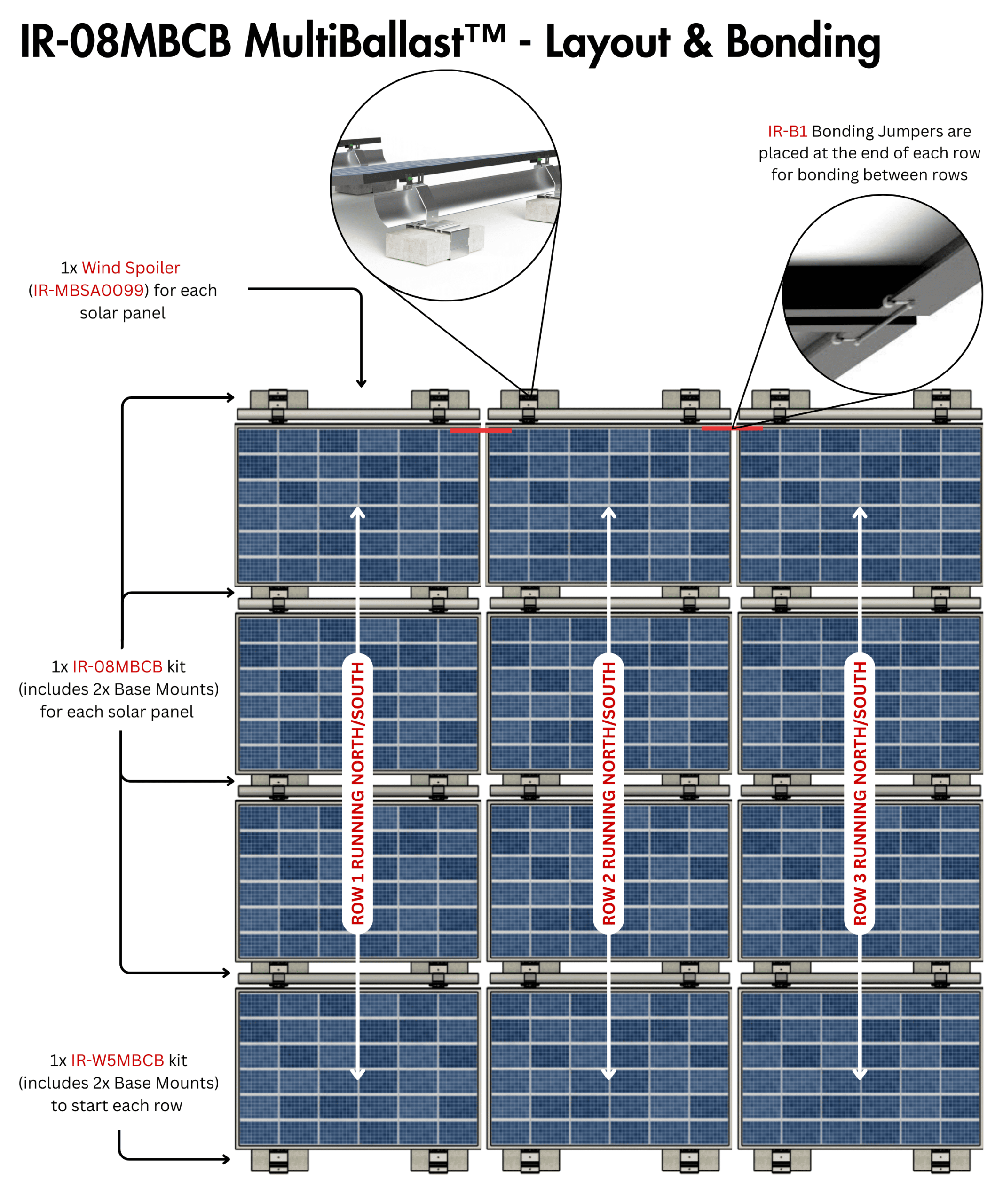

For proper installation, use one IR-08MBCB kit per solar panel, plus one IR-W5MBCB starter kit for each row.
For example, a row containing 10 solar panels requires 10 IR-08MBCB kits and one IR-W5MBCB starter kit.
Additionally, each solar module requires one compatible Wind Spoiler. The Wind Spoiler helps block wind uplift and creates downforce for the mounting system.
Wind Spoilers, starter kits, concrete ballast blocks, and solar panels are sold separately.
Before installation, installers should determine the appropriate ballast weight based on site conditions, structural requirements, wind exposure, and manufacturer installation guidelines. Therefore, careful planning helps ensure a stable and secure solar mounting system.
Ideal Applications

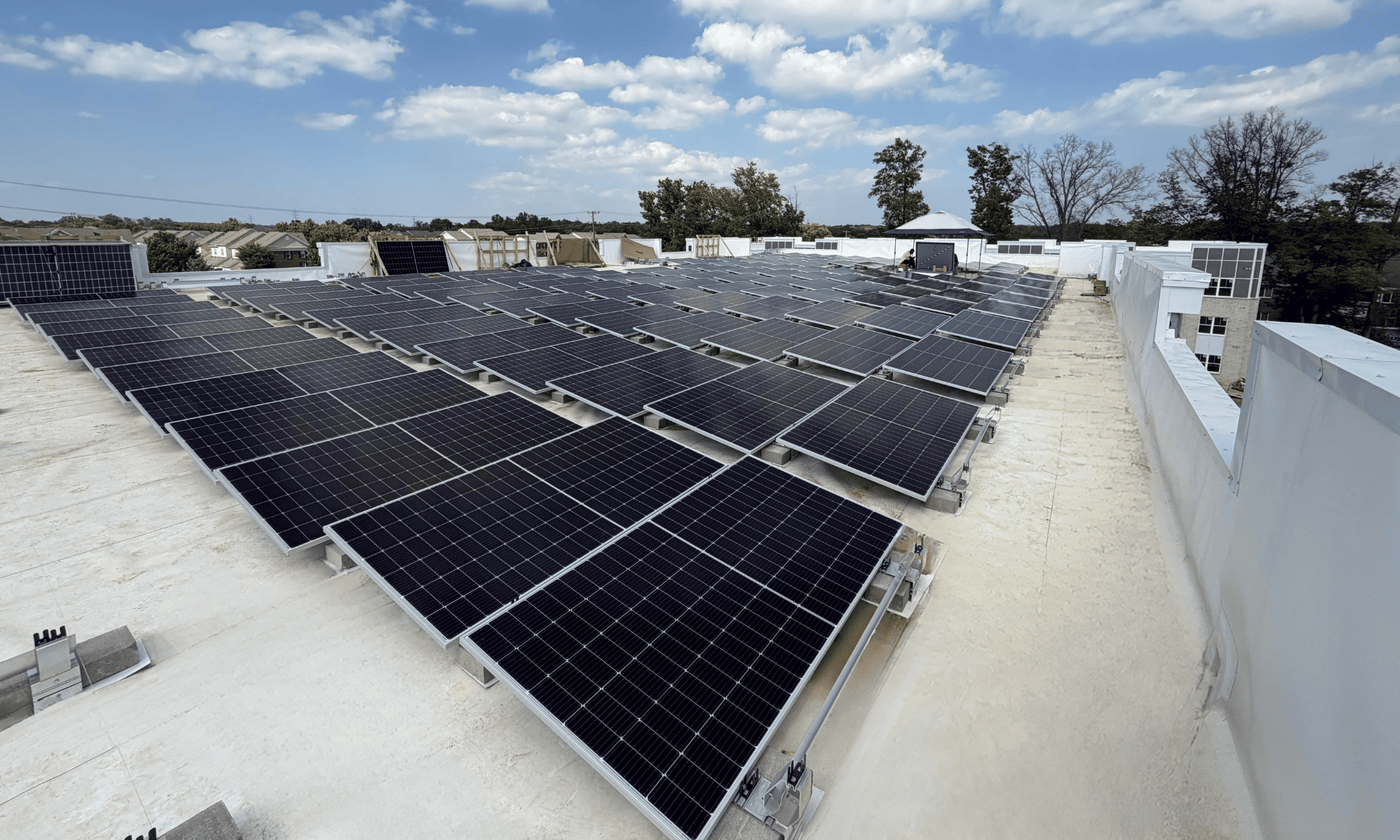

The IntegraRack IR-08MBCB MultiBallast mounting kit supports residential, commercial, and off-grid solar installations. Moreover, its low-profile design makes it suitable for compatible roof and ground mounting projects.
Choose the IntegraRack IR-08MBCB MultiBallast for a durable, lightweight, and versatile 8° North/South solar panel mounting solution.
