IntegraRack IR-40FSAB BallastRack Adjustable Solar Panel Ground Mount

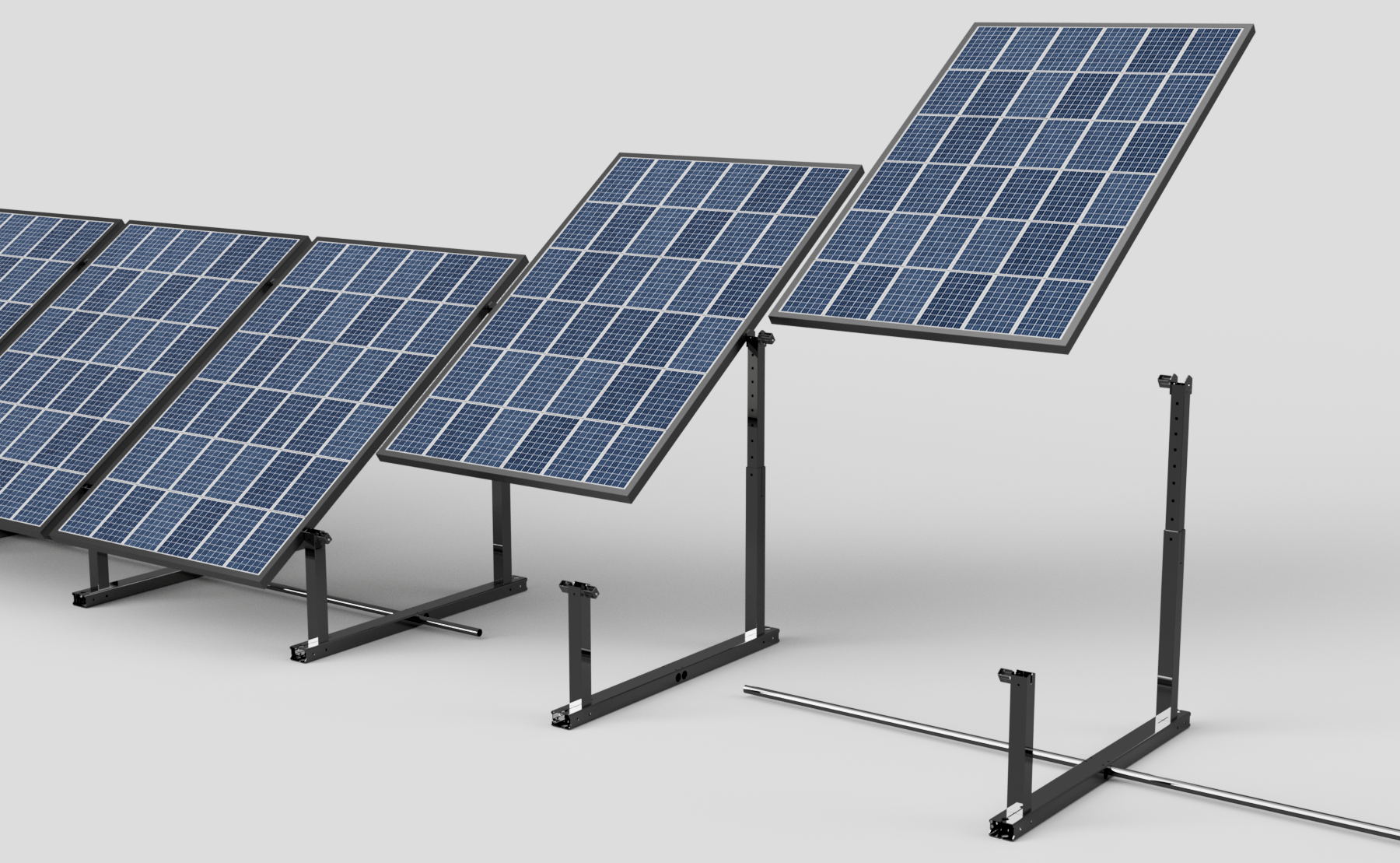

The IntegraRack IR-40FSAB BallastRack is a fixed adjustable-angle solar panel ground-mount system manufactured from durable black zinc-plated steel. Designed for versatile solar installations, this mounting rack provides adjustable solar panel positioning from 15° to 40° in 2.5° increments.
Whether you are installing a residential, commercial, or off-grid solar power system, the IR-40FSAB offers multiple mounting configurations to accommodate different installation requirements. Its adjustable design allows installers to select a suitable fixed panel angle based on site conditions and solar array requirements.
IntegraRack IR-40FSAB Key Features

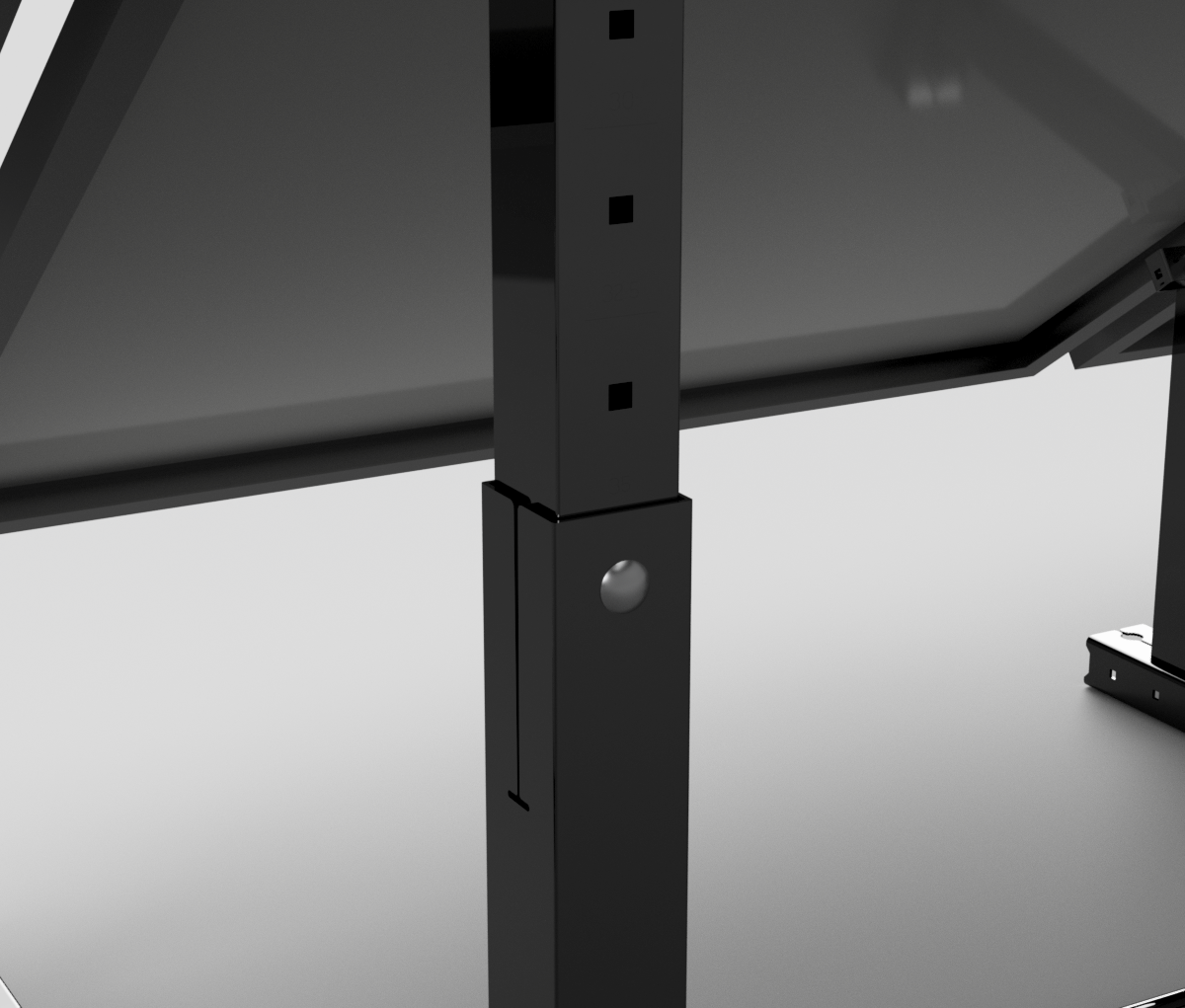

- Adjustable Tilt: Select a fixed solar panel angle from 15° to 40° in 2.5° increments.
- Black Zinc-Plated Steel: Steel construction with a black zinc finish.
- Additional Ground Clearance: Sits 8 inches higher than IntegraRack fixed-angle mounting systems.

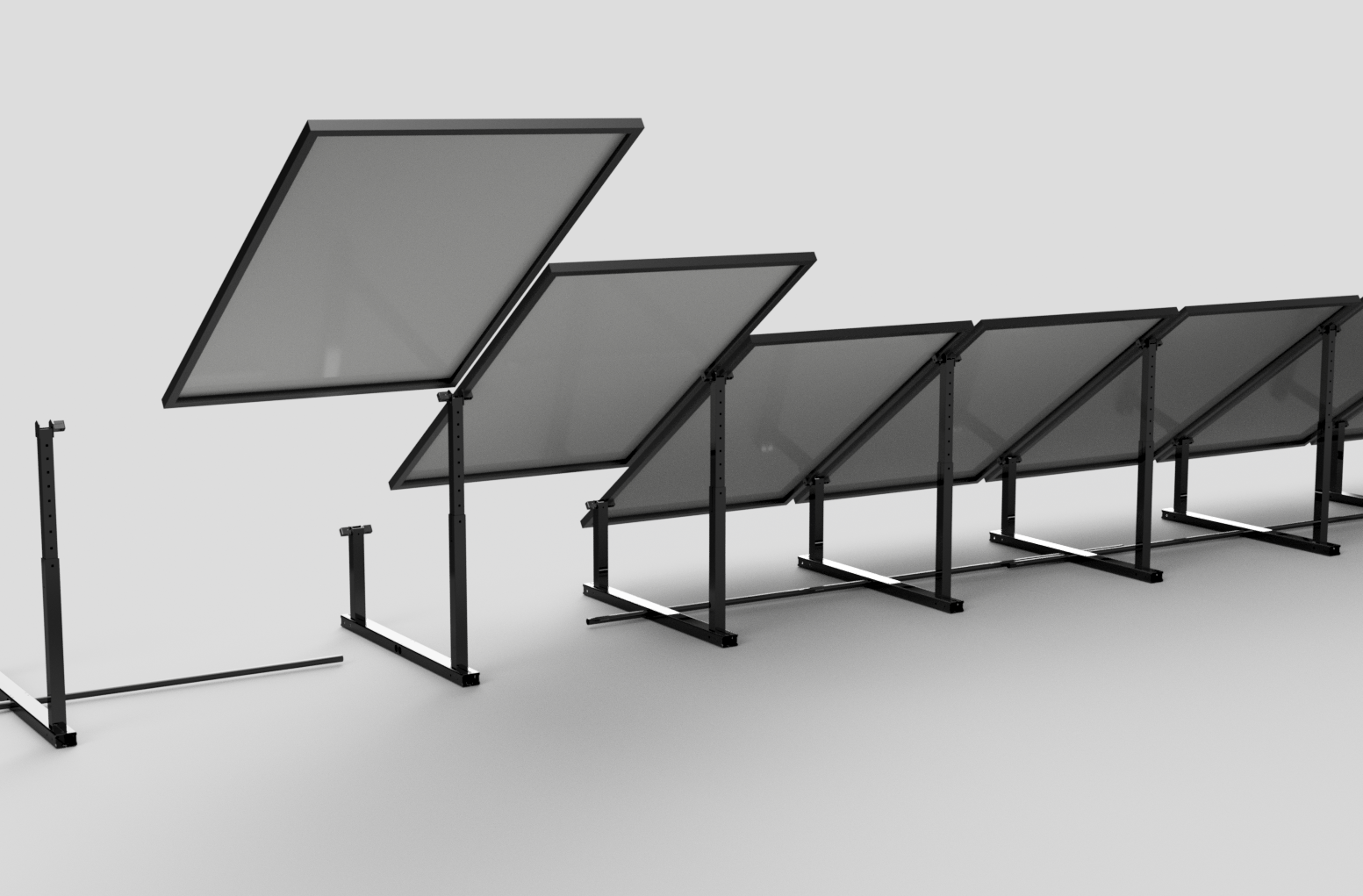

- Flexible Installation: Multiple mounting configurations are available.
- Included Bonding Clamps: Four IntegraRack IR-F2 solar module bonding brackets.
- Mounting Hardware: Includes carriage bolts, serrated nuts, and thread-cutting bolts.
IR-40FSAB Technical Specifications
- Manufacturer: IntegraRack
- Model: IR-40FSAB
- Manufacturer Part Number: IR-40FSAB0040
- Product Type: Fixed adjustable-angle solar module rack
- Application: Solar panel ground mounting
- Tilt Range: 15°–40°
- Tilt Adjustment Increments: 2.5°
- Material: Black zinc-plated steel
- Finish: Black zinc
- Ground Clearance: 8 inches higher than IntegraRack fixed-angle systems
Included Mounting Hardware
- 4 × IR-F2 flange clamp bonding brackets
- 4 × M8-1.25 × 90 mm carriage bolts
- 4 × M8-1.25 serrated nuts
- 4 × M8-1.25 × 16 mm thread-cutting bolts
Shipping Information
- Shipping Weight: 22 lbs
- Shipping Dimensions: 48 × 4 × 4 inches
Solar Ground Mount Installation Considerations
The IntegraRack IR-40FSAB is designed for solar panel ground-mount applications where an adjustable fixed tilt is desired. Its multiple mounting configurations provide flexibility when planning solar panel placement and support arrangements.
Before installation, verify solar panel compatibility, site conditions, applicable structural requirements, and appropriate anchoring or ballast methods. Solar panels and site-specific anchoring materials are not listed as included with this product.
For additional manufacturer information, visit the official IntegraRack website.
