IntegraRack MultiBallast DB™ 5° Flat Roof Solar Mounting Kit
The IntegraRack MultiBallast DB™ 5° Roof Mounting Kit offers a flexible, non-penetrating solution for solar panel installations on compatible rooftops. Manufactured from aircraft-grade aluminum, this modular system supports both 0° flat and 5° North/South solar panel configurations. In addition, installers can choose between adhesive bonding and concrete block ballast methods, depending on the approved installation design.
Each kit provides mounting components for one solar panel position. However, IntegraRack requires one additional kit to start each column of panels. As a result, installers can calculate the required mounting hardware according to their array layout.
Two Solar Panel Mounting Configurations

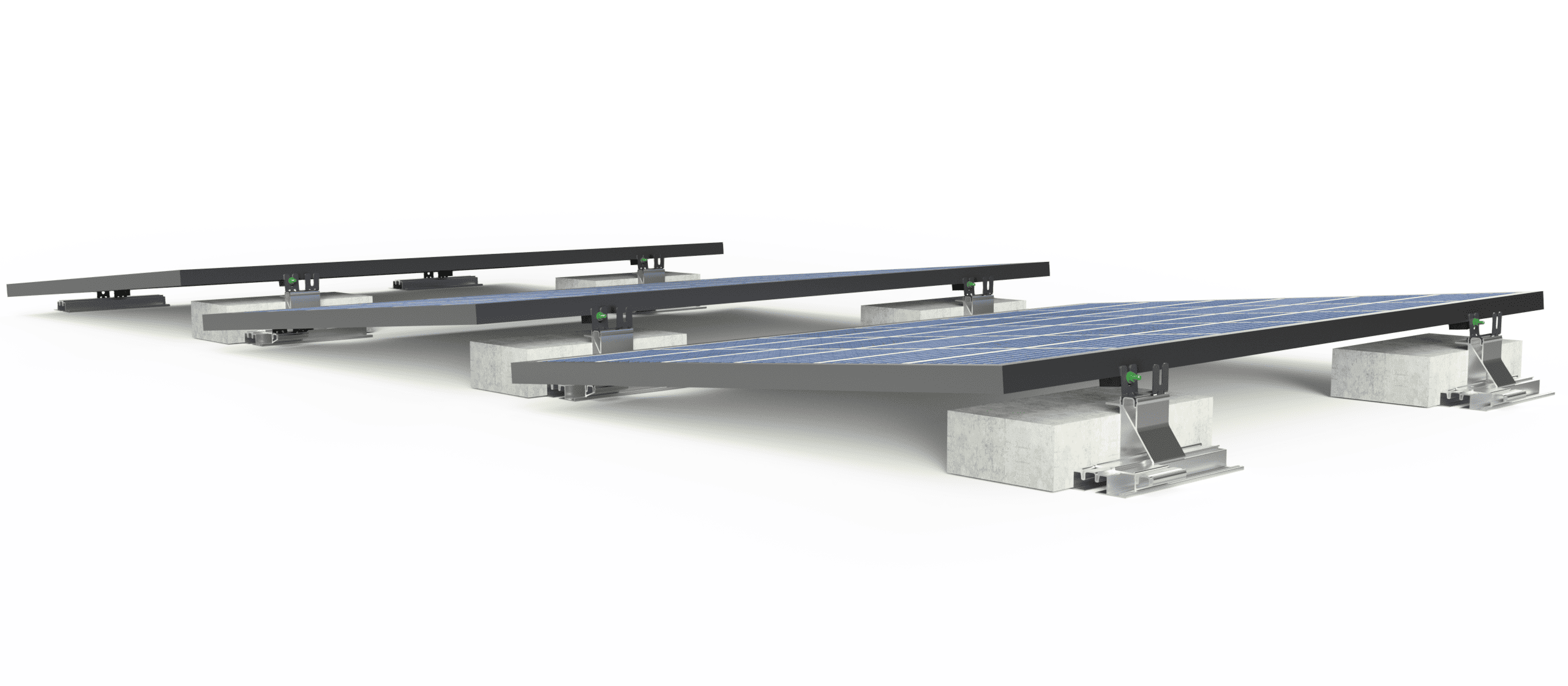

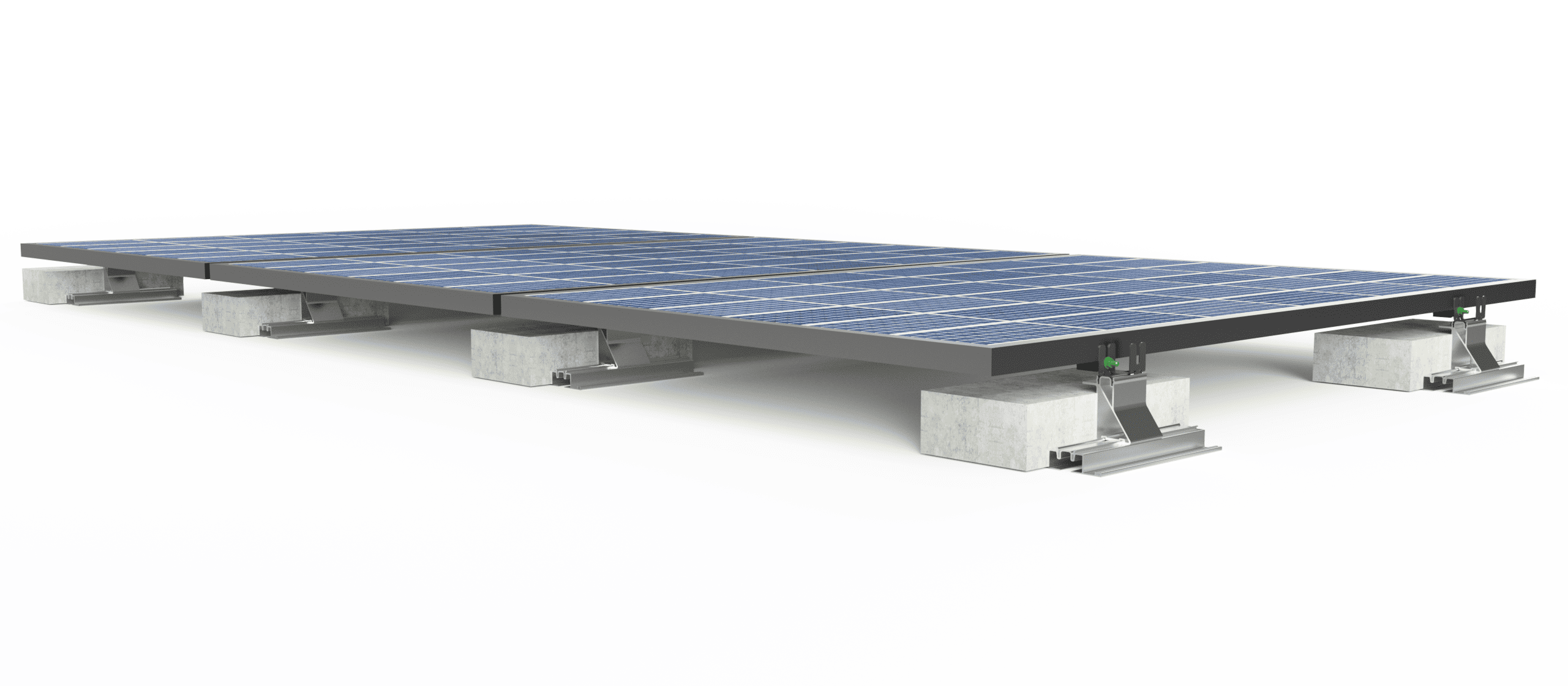

The MultiBallast DB system supports two mounting configurations. First, installers can position panels at 0° for a flat, low-profile arrangement. Alternatively, they can select a 5° North/South configuration when the installation design calls for a slight tilt.

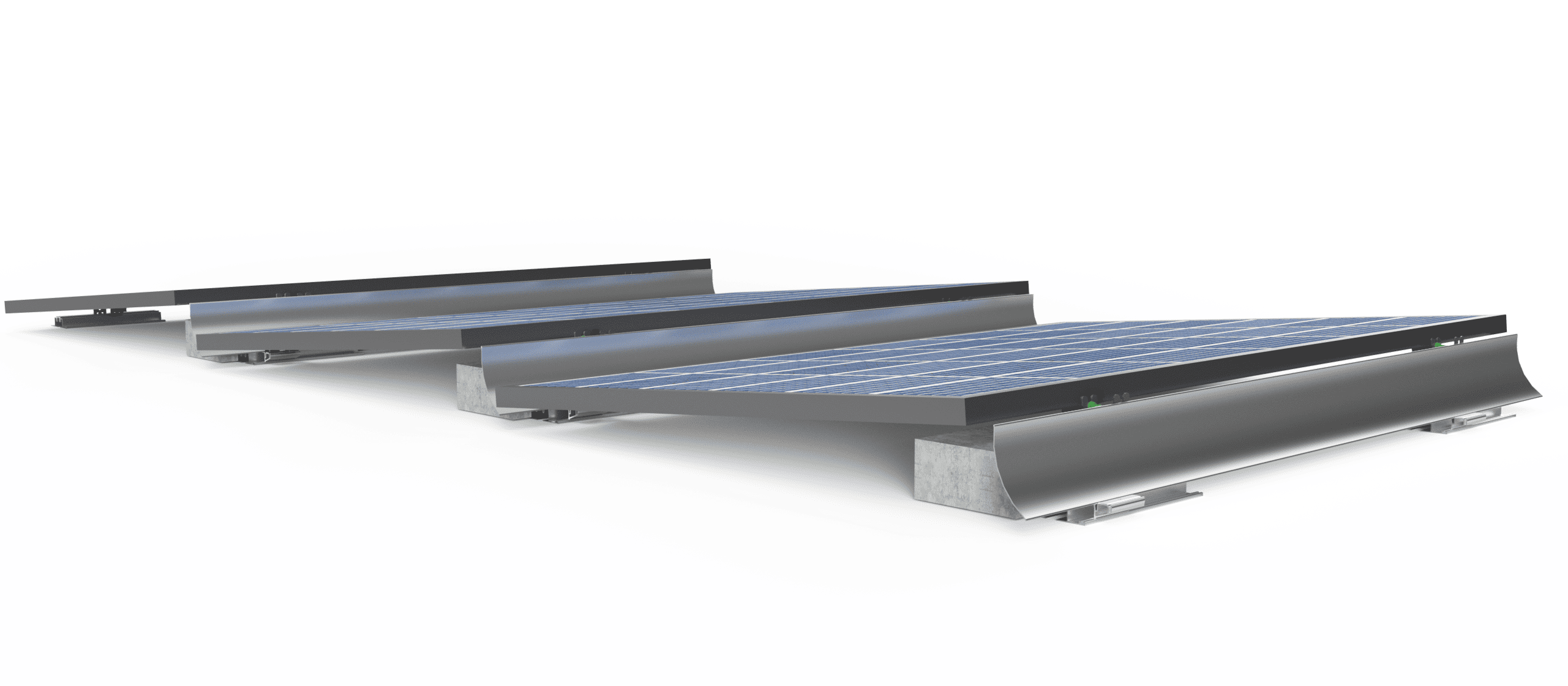

Furthermore, the 5° configuration can accommodate an optional wind spoiler for each solar panel. Wind spoilers are separate accessories and require verification of compatibility and installation requirements.
Non-Penetrating Adhesive or Ballast Installation
The IntegraRack MultiBallast DB mounting system offers two attachment methods. For adhesive installations, the manufacturer specifies SikaFlex 1A polyurethane sealant, which customers must purchase separately. This method bonds the mounting hardware to an approved roof surface without conventional roof-penetrating base fasteners.
Alternatively, installers can use standard concrete masonry unit (CMU) blocks as ballast. This option provides another installation method where the roof structure and approved system design can support the required ballast loads. However, the manufacturer does not include CMU blocks with the mounting kit.
Before installation, verify roof compatibility, surface preparation, wind uplift resistance, structural loading, and local building requirements. In addition, follow the manufacturer’s installation instructions for the selected attachment method.
Aircraft-Grade Aluminum Construction
IntegraRack manufactures the MultiBallast DB components from aircraft-grade aluminum with a mill finish. Consequently, the system combines relatively lightweight construction with strength and corrosion resistance for suitable rooftop applications.
The modular design also simplifies planning for different array sizes. Moreover, the included brackets, grip strips, and mounting hardware provide the primary components for each solar panel position.
Hardware Included With Each Kit
Each IntegraRack MultiBallast DB 5° mounting kit includes:
- 2 DB Series base mounts
- 2 DB Series riser brackets with H brackets installed
- 2 lower offset brackets with H brackets installed
- 2 short rubber grip strips
- 2 long rubber grip strips
- 2 full-length rubber grip strips
- 4 IR-F2 flange clamp bonding brackets
- 4 bolts measuring 10 mm
- 2 bolts measuring 20 mm
- 2 40 × 40 mm 3M double-stick pads
- 4 40 × 40 mm anti-friction rubber pads
Important: SikaFlex 1A sealant, CMU ballast blocks, and optional wind spoilers are not listed among the included hardware.
Modular Solar Array Planning
IntegraRack requires one mounting kit per solar panel, plus one additional kit to start each column. For example, an array containing six panels in one column requires seven kits. Likewise, a twelve-panel array arranged in three columns requires fifteen kits.
Therefore, customers should confirm their solar array layout before ordering. Additionally, installers should determine whether the project requires adhesive bonding, ballast blocks, or optional wind spoilers.
Technical Specifications
- Manufacturer: IntegraRack
- Series: MultiBallast DB™
- Part Number: IR-05MBDB0093
- Product Type: Non-Penetrating Solar Roof Mounting Kit
- Material: Aircraft-Grade Aluminum
- Finish: Mill
- Mounting Configurations: 0° Flat or 5° North/South
- Attachment Options: Adhesive Bonding or CMU Ballast
- Specified Adhesive: SikaFlex 1A Polyurethane Sealant (Not Included)
- Package Dimensions: 12 × 6 × 9 inches
- Package Weight: 5 lbs
- Case Quantity: 8 Kits
- Case Dimensions: 24 × 14 × 19 inches
- Case Weight: 40 lbs
Order IntegraRack MultiBallast DB From Geo Eco Systems
Geo Eco Systems offers the IntegraRack MultiBallast DB™ 5° Flat Roof Solar Mounting Kit for residential and commercial solar projects. Whether your installation calls for a flat panel layout or a slight 5° tilt, this versatile mounting system provides flexible attachment options and durable aluminum construction.
Sold per solar panel kit. Review the manufacturer’s installation requirements, confirm roof compatibility, and calculate the necessary kit quantity before purchasing.
