IntegraRack IR-T1 TileBallast Solar Panel Roof Mount – No Penetration (10-Pack)

Description

IntegraRack IR-T1 TileBallast Solar Panel Roof Mount – No Penetration (10-Pack)

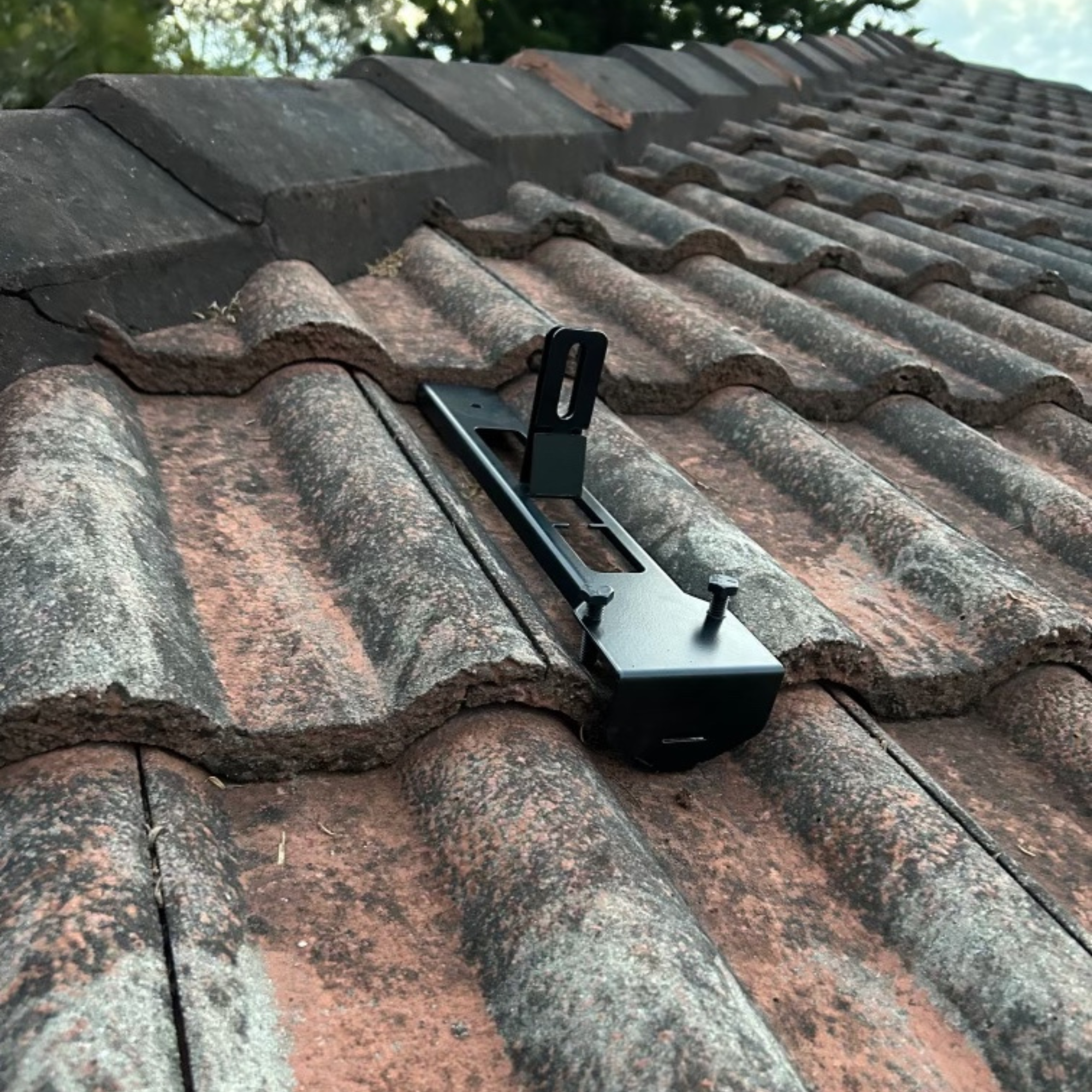

The IntegraRack IR-T1 TileBallast is a non-penetrating solar panel roof mounting system designed specifically for tile roof installations. Each package includes 10 high-strength steel roof mounts with a durable black zinc finish. Additionally, the system allows installers to mount solar panel racking without removing roof tiles or creating roof penetrations.

Unlike traditional solar mounting systems that require drilling through roofing materials, the IR-T1 TileBallast uses a non-invasive mounting design. As a result, installers can attach compatible solar module rail systems while avoiding penetrations through the roof surface. Furthermore, each mounting bracket features an integrated upright for connecting solar panel mounting rails.

IntegraRack IR-T1 TileBallast Key Features

• Non-Penetrating Roof Mount: Designed for tile roof installations without drilling through roofing materials.
• No Tile Removal Required: Installers can position the mounting brackets without removing existing roof tiles.
• 10 Roof Mounts Per Kit: Each package includes ten IntegraRack IR-T1 TileBallast mounting brackets.
• High-Strength Steel Construction: Manufactured from high-strength steel for solar mounting applications.
• Black Zinc Finish: Features the manufacturer’s specified black zinc surface finish.

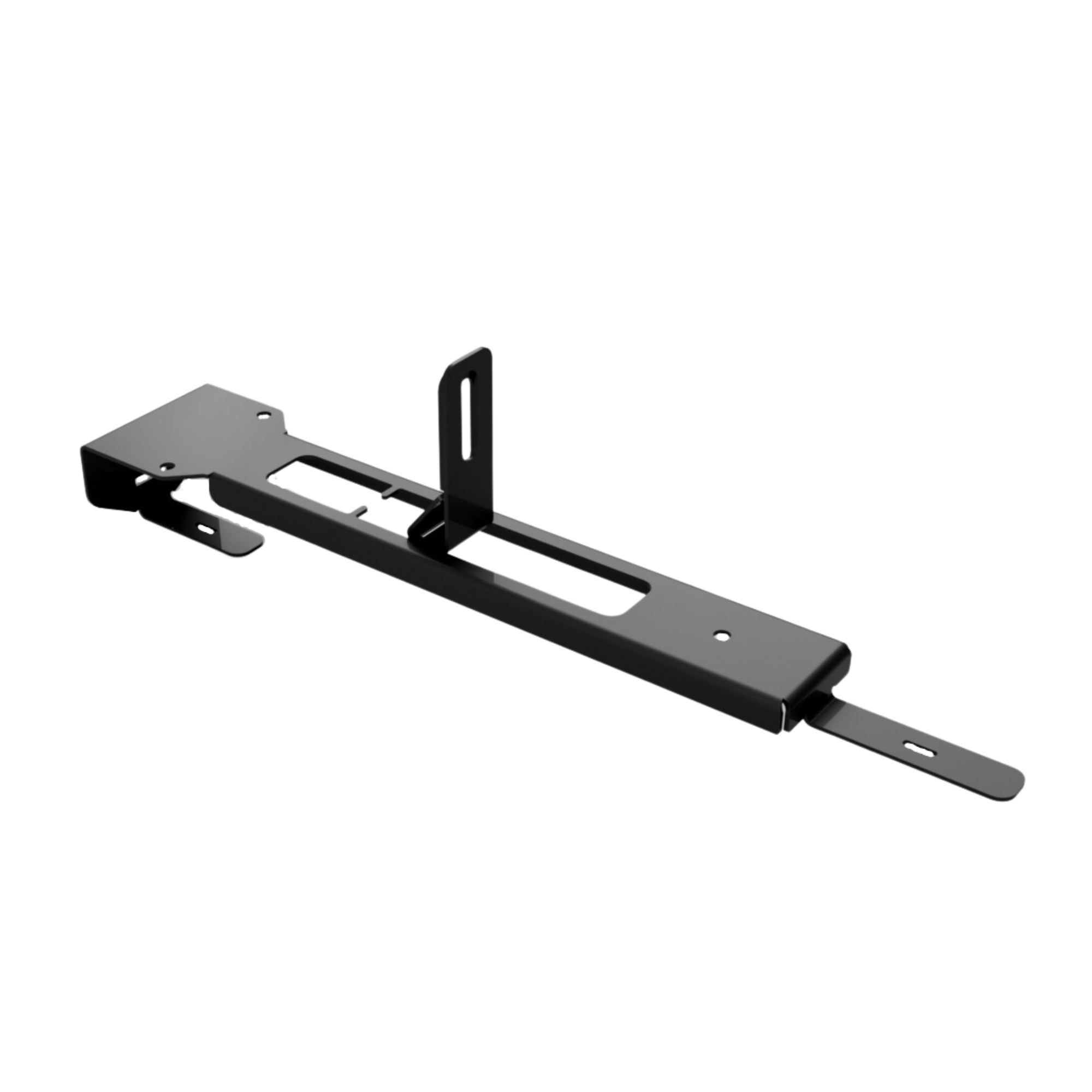

• Integrated Rail Upright: Each mount includes an upright designed to connect with solar module rail systems.
• Fast Installation Design: IntegraRack states that installers can install individual roof brackets in less than two minutes under suitable conditions.

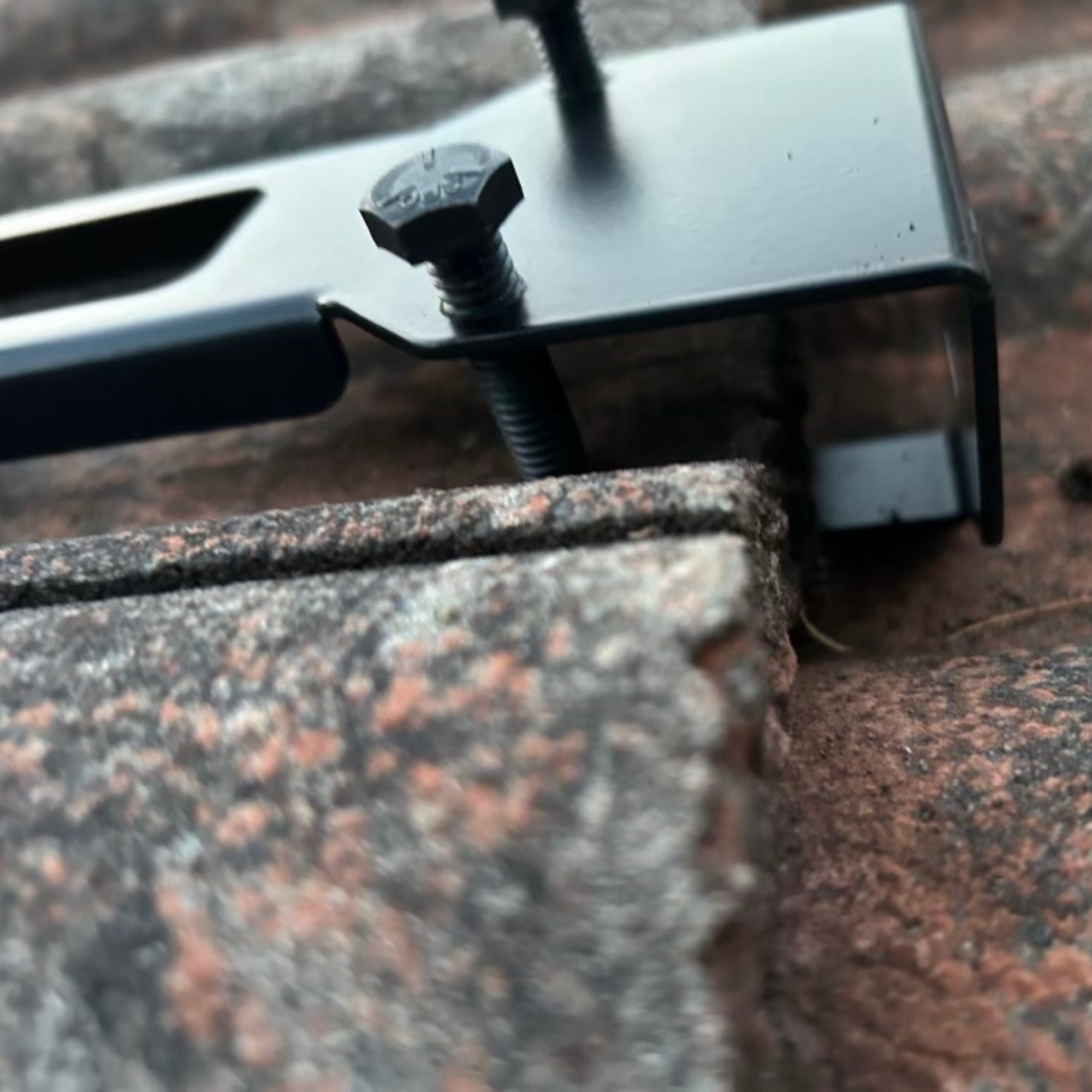

• Included Mounting Hardware: Includes twenty M8-1.25 × 24mm black tile tension bolts.

IR-T1 TileBallast Technical Specifications

• Manufacturer: IntegraRack
• Model: IR-T1 TileBallast
• Manufacturer Part Number: IR-T1TB1031
• Product Type: Non-penetrating tile roof solar mounting system
• Mounting Application: Tile roof solar panel installations
• Mounting Method: Non-invasive, no roof penetrations
• Roof Tile Removal: Not required by the manufacturer’s installation design
• Quantity: 10 roof mounting brackets
• Material: High-strength steel
• Finish: Black zinc
• Rail Connection: Integrated mounting upright
• Solar Rail Compatibility: Designed for solar module rail systems

IntegraRack IR-T1 Included Mounting Hardware

Each IR-T1 TileBallast 10-pack includes the roof mounting components specified by IntegraRack. Specifically, the package contains:

• 10 × IR-T1 TileBallast roof mounting brackets
• 20 × M8-1.25 × 24mm black tile tension bolts

Additionally, each roof mounting bracket includes an integrated upright for connecting solar module rails. However, customers should confirm the compatibility of their selected rail system and any additional hardware requirements before installation.

Shipping Information

• Shipping Weight: 11 lbs
• Shipping Dimensions: 20 × 16 × 3 inches

Benefits of Non-Penetrating Solar Panel Roof Mounting

The IntegraRack IR-T1 TileBallast provides a mounting option for solar installations on compatible tile roofs. Traditionally, some solar mounting methods require installers to remove roof tiles or drill through roofing materials. In contrast, the IR-T1 uses a non-penetrating design that avoids those installation steps.

As a result, installers can reduce the need to disturb existing roof tiles during mounting. Furthermore, the integrated upright provides a connection point for solar panel mounting rails.

For example, installers planning a residential tile roof solar array can use the IR-T1 system when the roof construction and installation requirements support this mounting method. Additionally, the ten-pack configuration allows customers to purchase multiple roof mounting brackets together.

However, non-penetrating installation does not eliminate the need to evaluate roof conditions, structural capacity, wind uplift, and applicable building requirements. Therefore, installers should verify that the mounting system is suitable for the specific roof and solar array design.

Tile Roof Solar Mount Installation Considerations

Before installing the IR-T1 TileBallast, confirm the roof tile type, roof condition, solar module rail compatibility, and required mounting layout. Additionally, installers should review the manufacturer’s current installation instructions and any applicable local building codes.

Although IntegraRack describes the system as non-invasive, the installation must still meet applicable structural and wind-load requirements. Consequently, customers should not assume that every tile roof is suitable without further evaluation.

Important: This product includes ten IR-T1 TileBallast roof mounts and twenty black tile tension bolts. Solar panels and solar module rails are not listed as included in the manufacturer’s kit contents.

For additional product information and installation resources, visit the official IntegraRack website.
